Rear Compartment Lid Adjustment

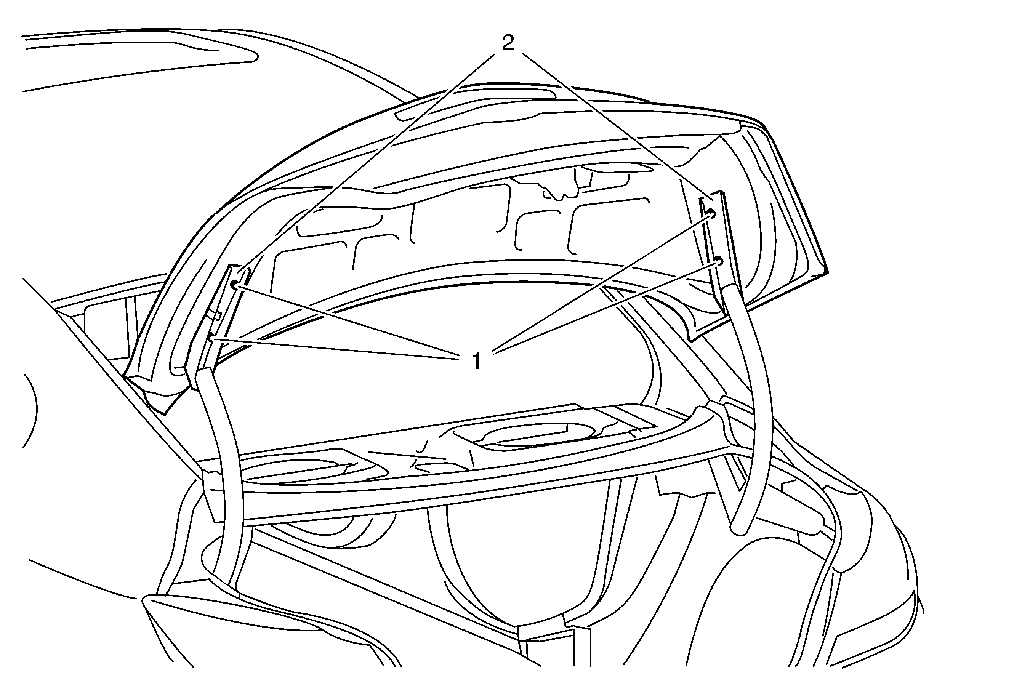

Fig 1: Rear Compartment Lid & Mounting Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .
1	Rear Compartment Lid Fastener (Qty:4) Procedure Loosen the fasteners securing the rear compartment lid to the rear compartment lid hinges. Align the rear compartment lid in order to achieve an equal gap around the entire perimeter of the rear compartment lid.
2	Rear Compartment Lid Hinge CAUTION: Refer to Fastener Caution . Procedure Tighten the fasteners in order to secure the rear compartment lid to the rear compartment lid hinges. Adjusting the rear compartment overslam rear bumper fascia may be necessary. Tighten 22 N.m (16 lb ft)

Callout

Component Name

Preliminary Procedure
Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .

Rear Compartment Lid Fastener (Qty:4)

Procedure

Loosen the fasteners securing the rear compartment lid to the rear compartment lid hinges.
Align the rear compartment lid in order to achieve an equal gap around the entire perimeter of the rear compartment lid.

Rear Compartment Lid Hinge

CAUTION:

Procedure

Tighten the fasteners in order to secure the rear compartment lid to the rear compartment lid hinges.
Adjusting the rear compartment overslam rear bumper fascia may be necessary.

Tighten
22 N.m (16 lb ft)
