Hood Replacement

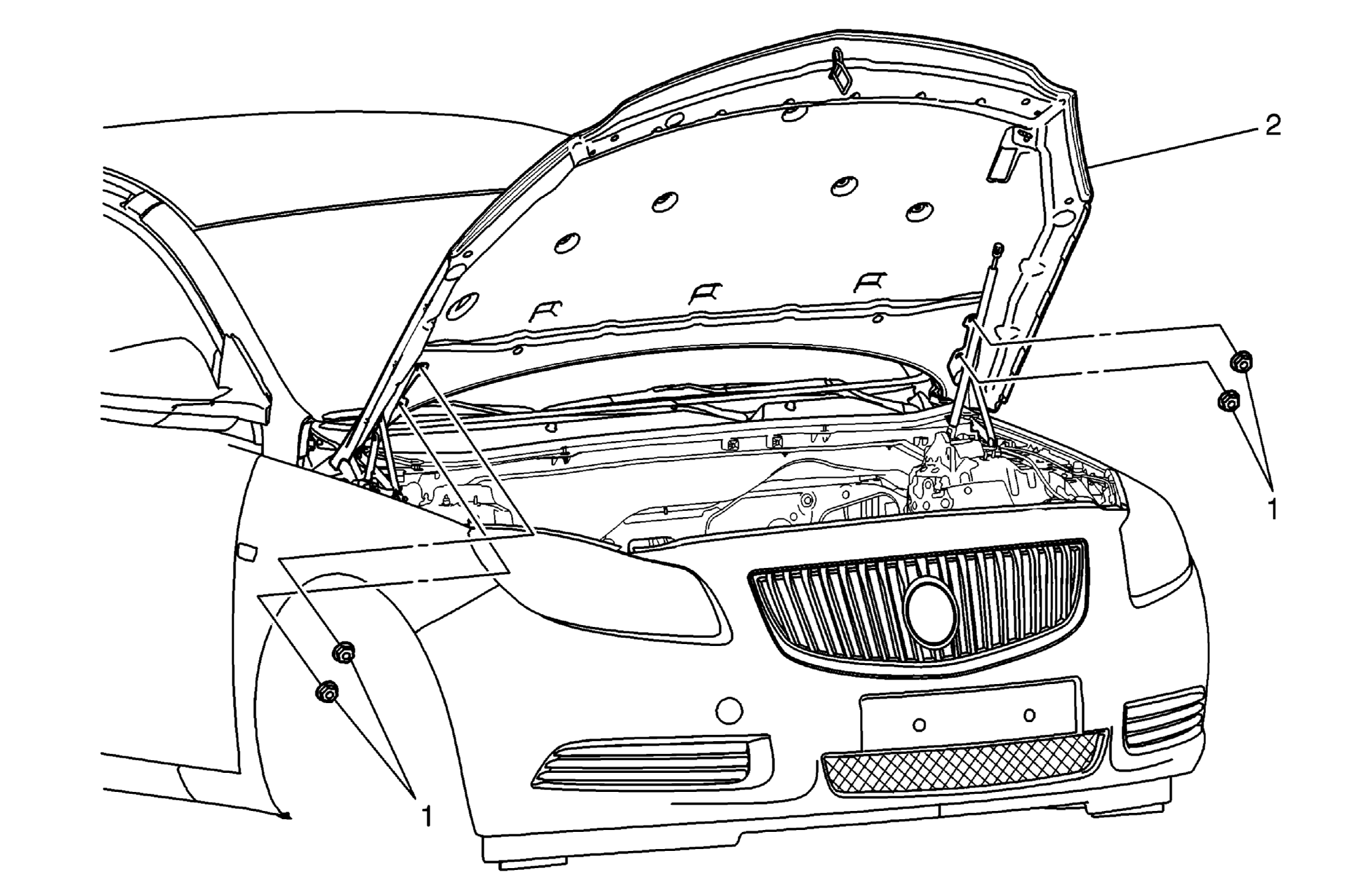

Fig 1: Hood And Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury. Preliminary Procedure Disconnect the hood strut. Refer to Hood Strut Replacement
1	Hood Hinge Fastener (Qty:4) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Hood Procedure Transfer any parts as needed. Adjust the hood as needed. Refer to Hood Adjustment .

Callout

Component Name

WARNING:

When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Preliminary Procedure Disconnect the hood strut. Refer to Hood Strut Replacement

Hood Hinge Fastener (Qty:4)

CAUTION:

Refer to Fastener Caution .

Tighten
22 N.m (16 lb ft)

Hood

Procedure

Transfer any parts as needed.
Adjust the hood as needed. Refer to Hood Adjustment .
