Hood Adjustment

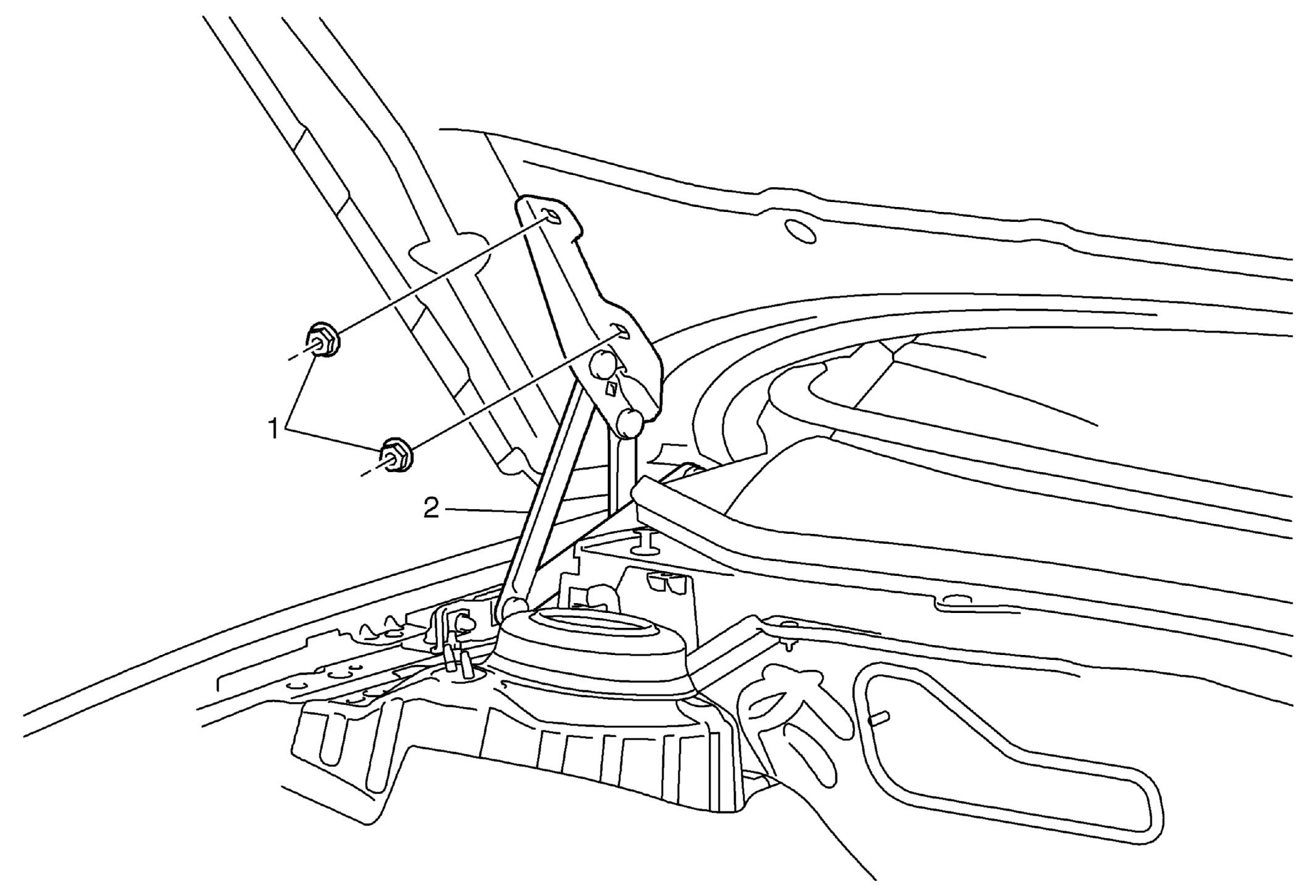

Fig 1: Hood Hinge & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Hood Hinge Fastener (Qty:2) Procedure Loosen the fasteners that secure the hood. Adjust the hood in order to obtain an even gap on both sides between the hood and the fenders and so that the hood is flush with both fenders on the front edge.
2	Hood Hinge CAUTION: Refer to Fastener Caution . Procedure Tighten the fasteners in order to secure the hood to the hood hinges. Tighten 22 N.m (16 lb ft)

Callout

Component Name

Hood Hinge Fastener (Qty:2)

Procedure

Loosen the fasteners that secure the hood.
Adjust the hood in order to obtain an even gap on both sides between the hood and the fenders and so that the hood is flush with both fenders on the front edge.

Hood Hinge

CAUTION:

Procedure
Tighten the fasteners in order to secure the hood to the hood hinges.
Tighten
22 N.m (16 lb ft)
