Hood Hinge Replacement

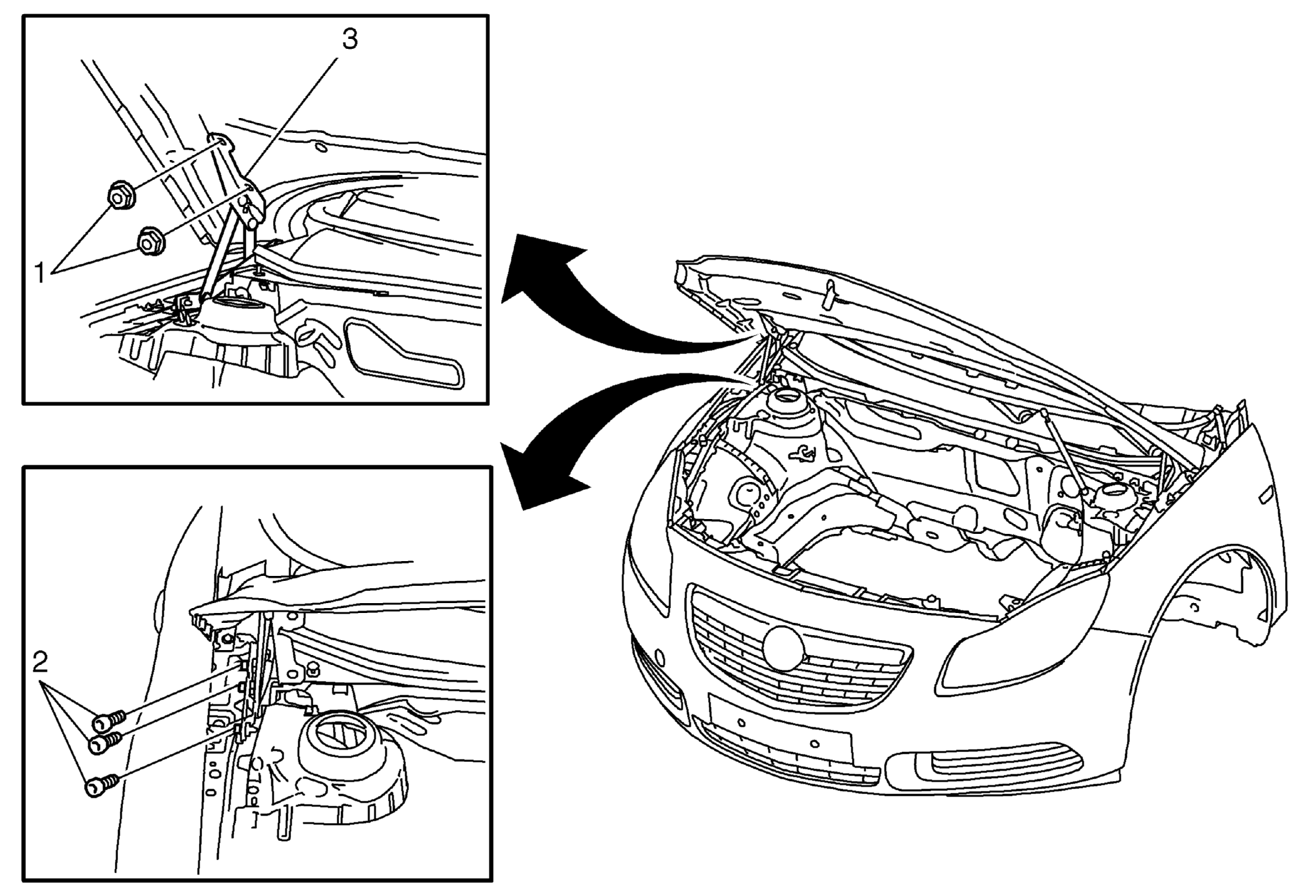

| Callout | Component Name |
|---|---|
| 1 | Hood Hinge Fastener (Qty:2)
WARNING:
When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.
CAUTION:
Refer to Fastener Caution . Procedure Mark the location of the hood hinge to the hood with a grease pencil to aid in alignment. Tighten 22 N.m (16 lb ft) |
| 2 | Hood Hinge Fastener (Qty:3) Procedure Adjust the hood hinge after replacing, if needed. Refer to Hood Adjustment . Tighten 22 N.m (16 lb ft) |
| 3 | Hood Hinge |
