Hood Hinge Bracket Replacement

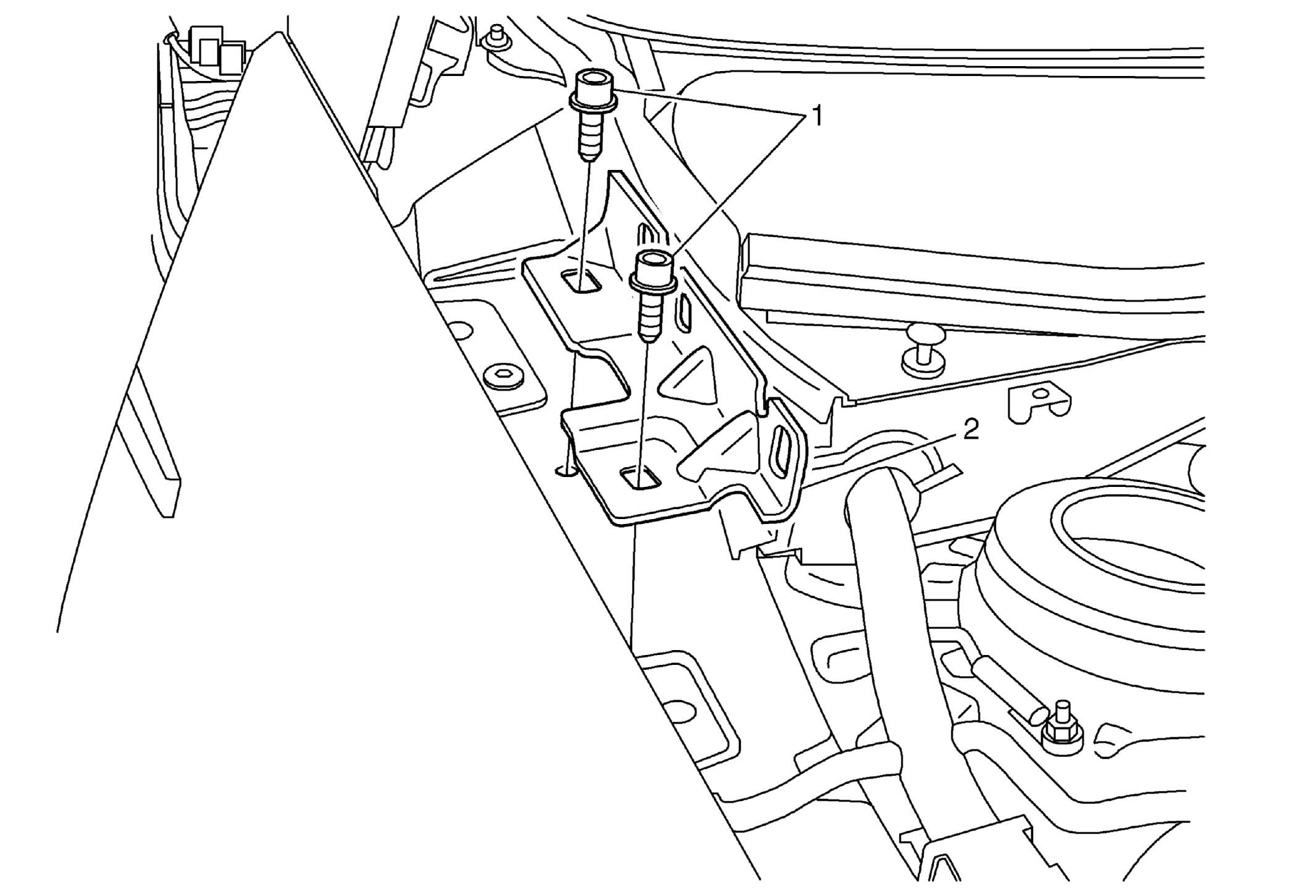

Fig 1: Hood Hinge Bracket And Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the hood hinge. Refer to Hood Hinge Replacement .
1	Hood Hinge Fastener (Qty:2) CAUTION: Refer to Fastener Caution . Procedure Mark the location of the hood hinge bracket to the body with a grease pencil to aid in alignment. Adjust the hood hinge bracket after replacing, if needed. Tighten 22 N.m (16 lb ft)
2	Hood Hinge Bracket

Callout

Component Name

Preliminary Procedure
Remove the hood hinge. Refer to Hood Hinge Replacement .

Hood Hinge Fastener (Qty:2)

CAUTION:

Procedure

Mark the location of the hood hinge bracket to the body with a grease pencil to aid in alignment.
Adjust the hood hinge bracket after replacing, if needed.

Tighten
22 N.m (16 lb ft)

Hood Hinge Bracket
