Front Side Door Lock Striker Replacement

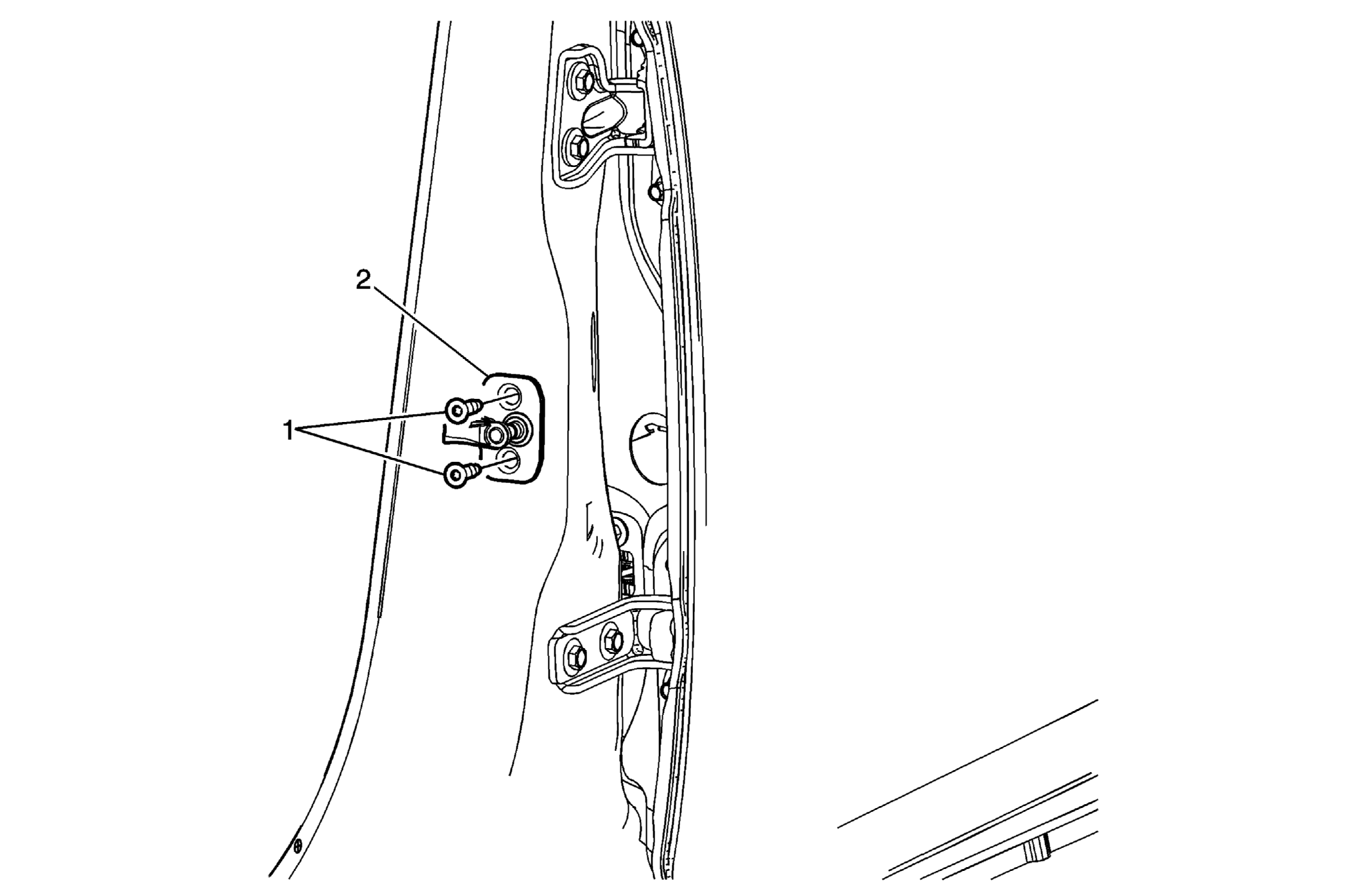

Fig 1: Identifying Door Striker

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Door Lock Striker Screws (Qty:2) CAUTION: Refer to Fastener Caution . Tighten  24 N.m (18 lb ft)
2	Front Door Lock Striker Procedure  Ensure the alignment of the striker. Refer to Front Side Door Lock Striker Adjustment .
