Front Side Door Lock Striker Adjustment
- Ensure that the door is properly aligned with the door opening before proceeding with the striker adjustment.

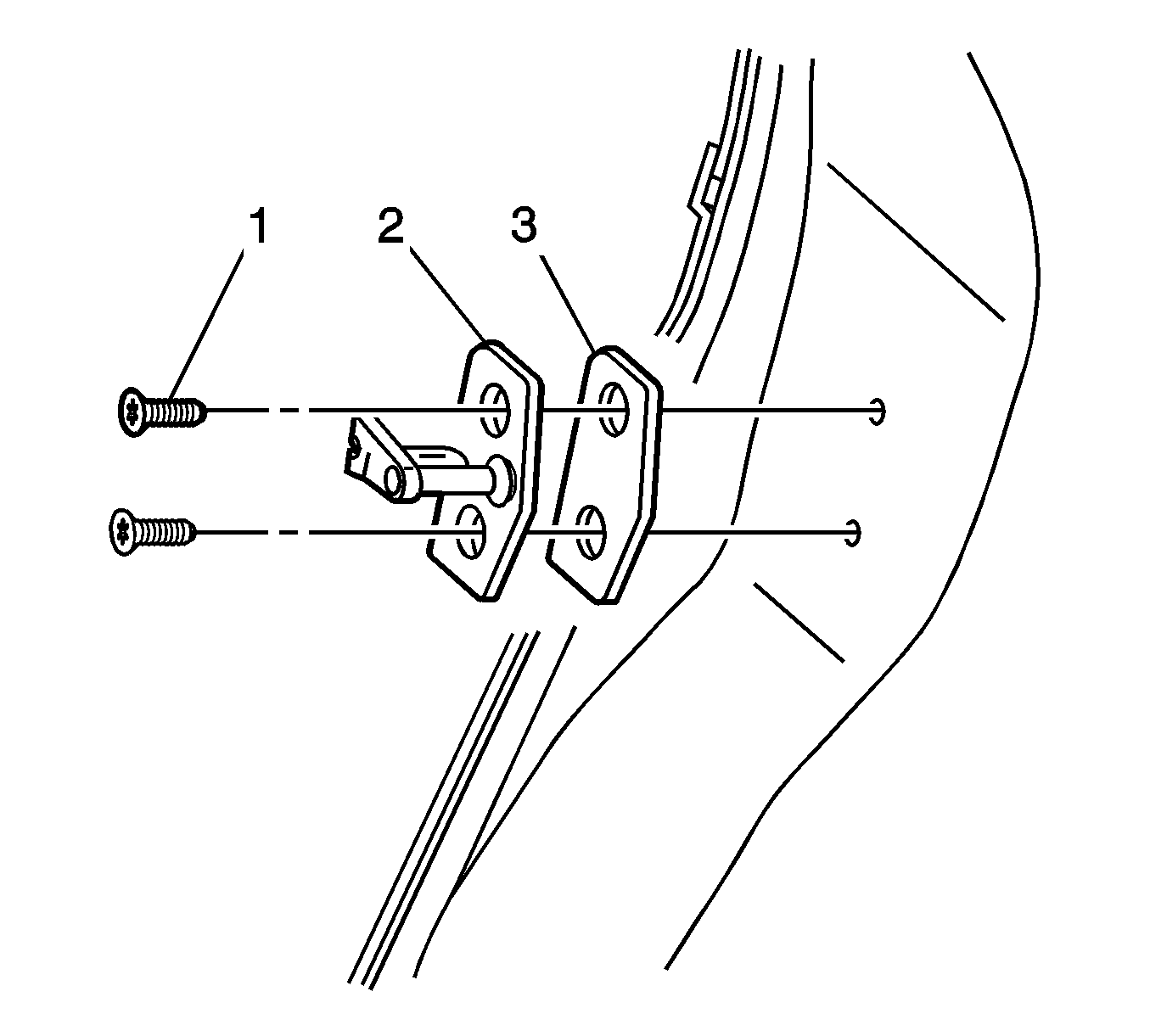

- Open and close the door on the striker (2). Note if the door drags on the striker causing the door to move upward or downward upon contact with the striker. Also note the closing effort to fully engage the latch.
- Using a soft marker, mark around the striker (2) for reference of the original position. Loosen the striker screws just enough to allow the movement of the door striker and shims if equipped.
- Adjust the door striker up or down and inboard or outboard as required.
- Move the striker to eliminate drag on the striker and door latch and to achieve proper door position within door opening. Start with up/down position, then position the striker to achieve proper alignment to the door opening. Set the in/out adjustment for proper door seal engagement ensuring that the door closing efforts are correct.
- Adjust the striker and add spacers as required.
Tighten
Tighten the screws to 24 N.m (18 lb ft).
- Inspect the door for proper operation.
- Close the door.
NOTE:
To determine if the striker adjustment is required, proceed as follows.
NOTE:
When the striker bolts have been removed, the striker anchor plate (1) will slip down in the door pillar or quarter panel and the trim will need to be removed to gain access.
CAUTION:
Refer to Fastener Caution .
