Tail Lamp Replacement

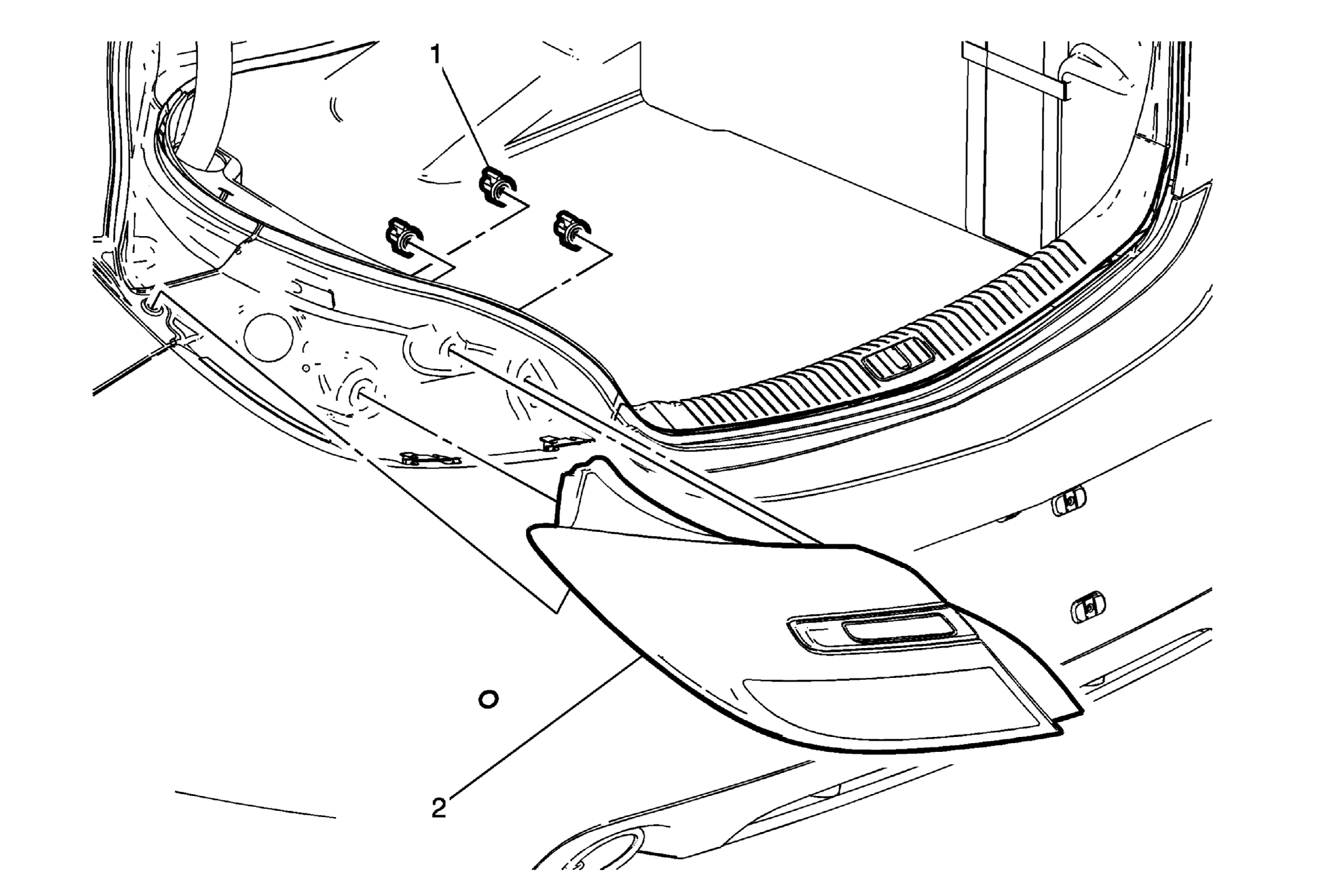

Fig 1: Tail Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment side trim panel. Refer to Rear Compartment Side Trim Panel Replacement (HP6, Left Side) , Rear Compartment Side Trim Panel Replacement (HP6, Right Side) or Rear Compartment Side Trim Panel Replacement (without HP6) .
1	Tail Lamp Nut (Qty:3) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Tail Lamp Procedure Grasp the most forward edge and firmly pull up to release the retainer. Disconnect the electrical connector and remove the tail lamp from vehicle.
