Rear Compartment Side Trim Panel Replacement (without HP6)

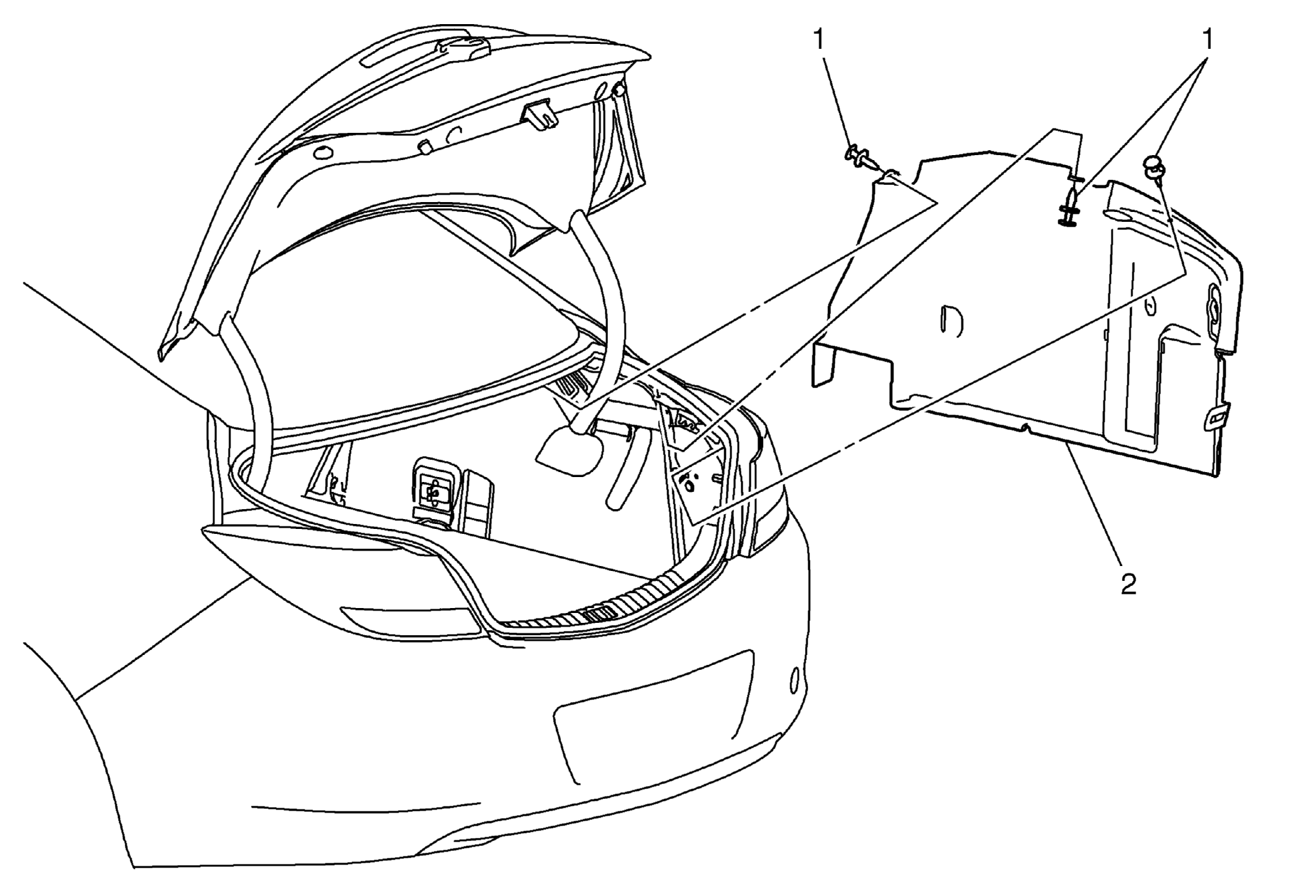

Fig 1: Rear Compartment Side Trim Panel & Retainers (without HP6)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Fold down rear seat to access retainer. Remove the rear end trim finish panel. Refer to Rear End Trim Finish Panel Replacement .
1	Rear Compartment Side Trim Panel Retainer (Qty:3)
2	Rear Compartment Side Trim Panel

Callout

Component Name

Preliminary Procedures

Fold down rear seat to access retainer.
Remove the rear end trim finish panel. Refer to Rear End Trim Finish Panel Replacement .

Rear Compartment Side Trim Panel Retainer (Qty:3)

Rear Compartment Side Trim Panel
