Tail Lamp Bulb Replacement

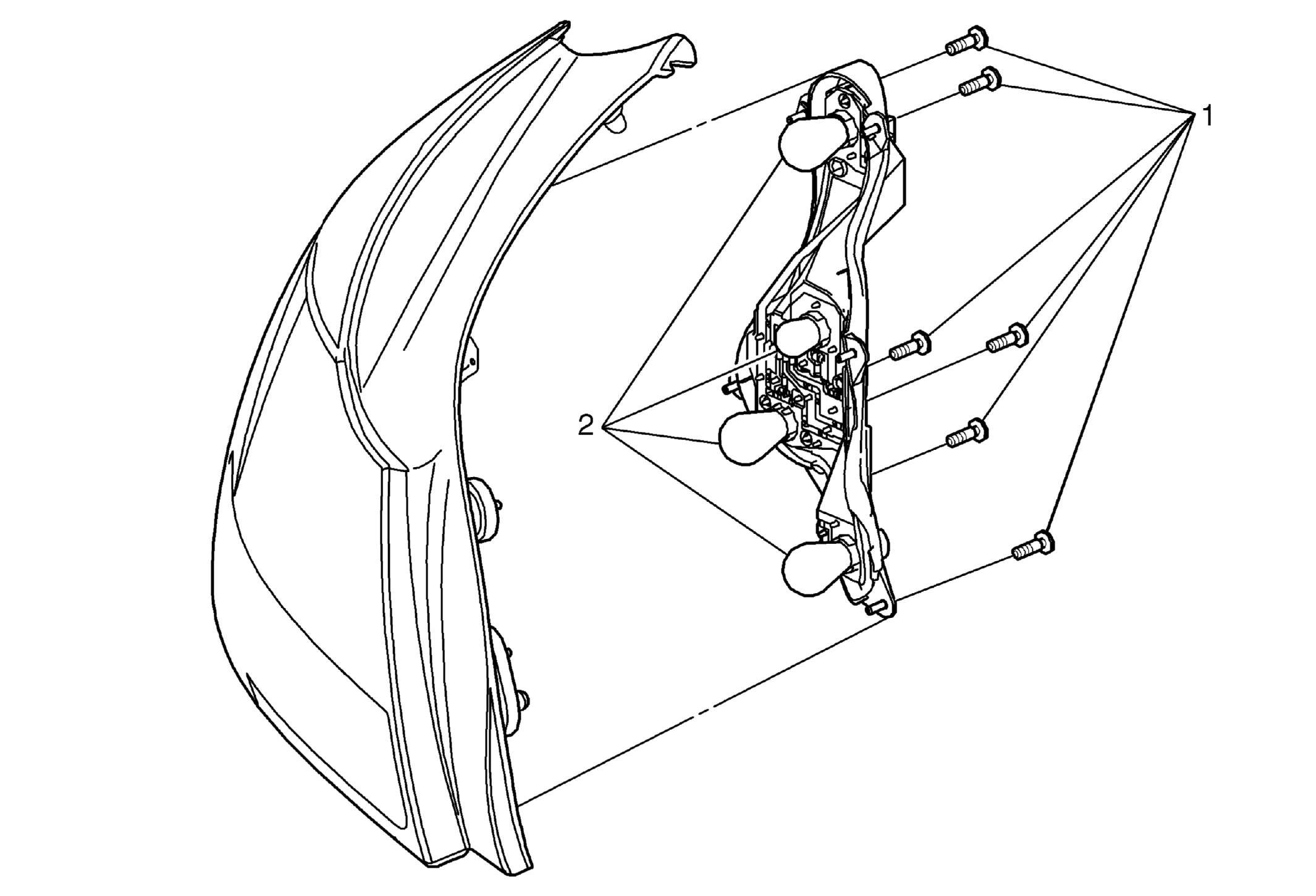

Fig 1: Tail Lamp Bulb

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the tail lamp. Refer to Tail Lamp Replacement .
1	Tail Lamp Harness Socket Fastener (Qty:6)
2	Tail Lamp Bulb CAUTION: Refer to Avoid Touching the Bulb Caution . Procedure Service the bulb, as needed. Pull the bulb straight from the lamp harness socket.

Callout

Component Name

Preliminary Procedure
Remove the tail lamp. Refer to Tail Lamp Replacement .

Tail Lamp Harness Socket Fastener (Qty:6)

Tail Lamp Bulb

CAUTION:

Procedure
