Headlamp Replacement

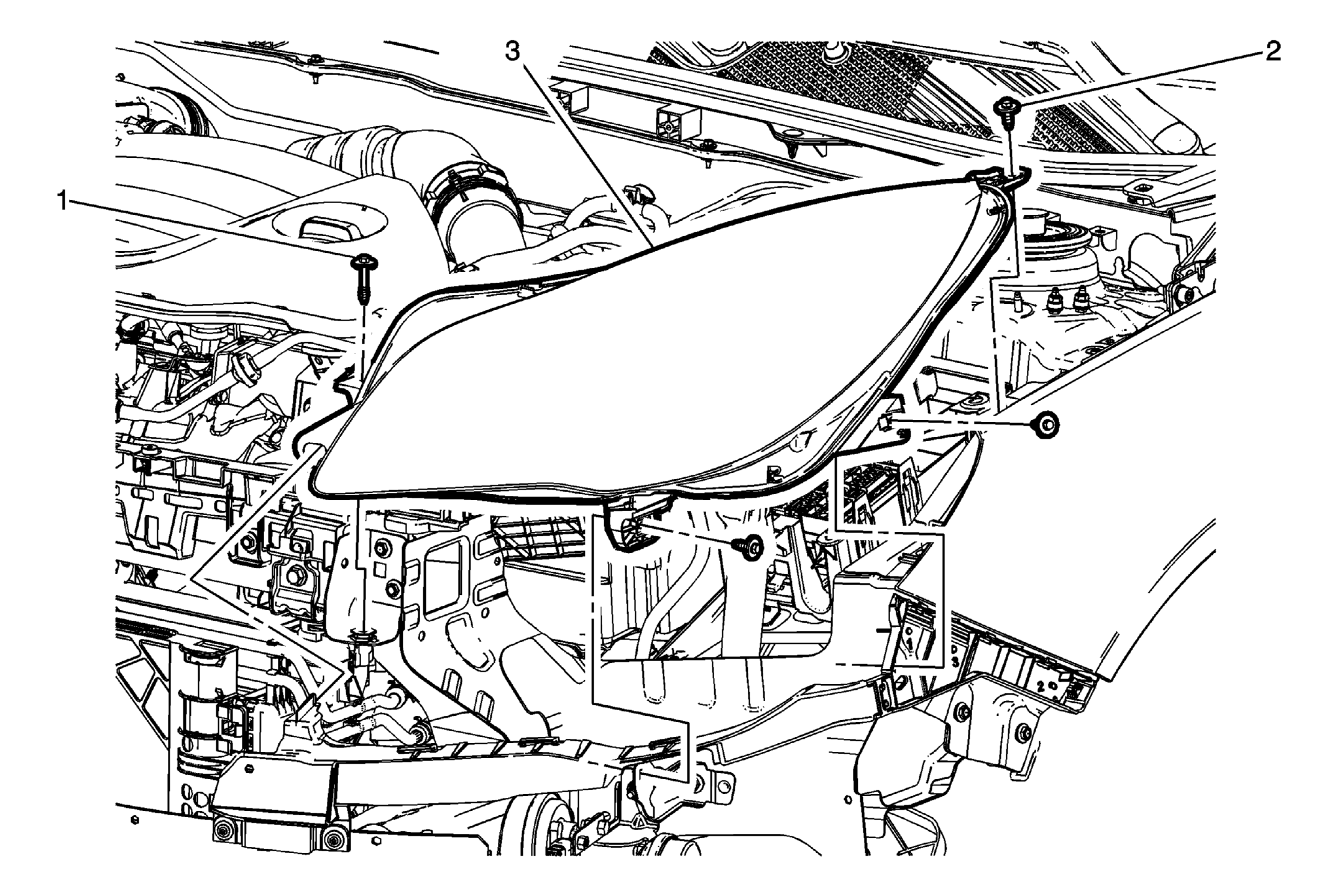

Fig 1: Headlamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Headlamp Bolt CAUTION: Refer to Fastener Caution .
2	Headlamp Bolt (Qty:3) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Headlamp Procedure Disconnect the electrical wiring harness and remove the headlamp. Aim the headlamp after replacement. Refer to Headlamp Aiming .
