Headlamp Bracket Replacement

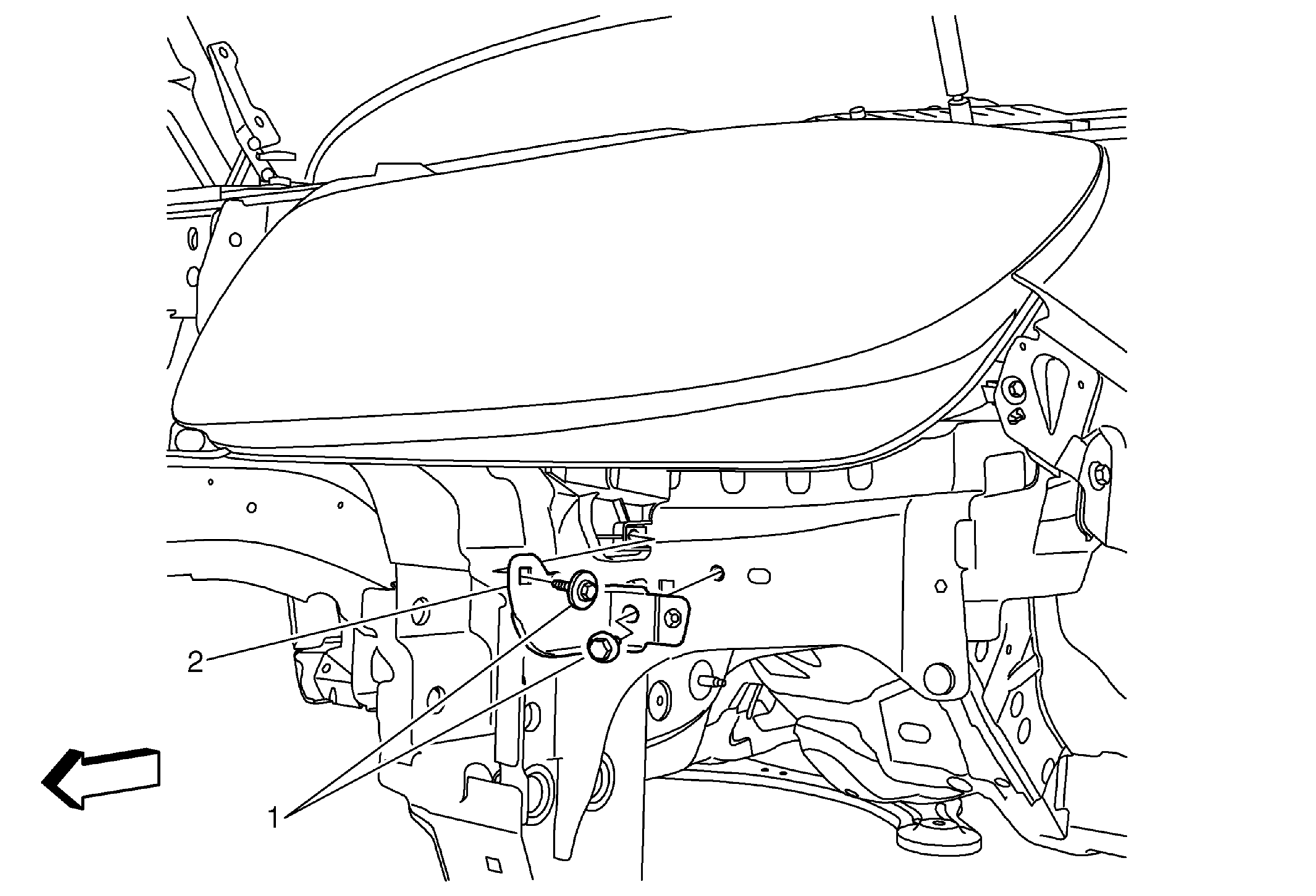

Fig 1: Headlamp Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Headlamp Bracket Fastener (Qty:2) Procedure Hand tighten the fasteners only.
2	Headlamp Bracket
