Headlamp Ballast Replacement

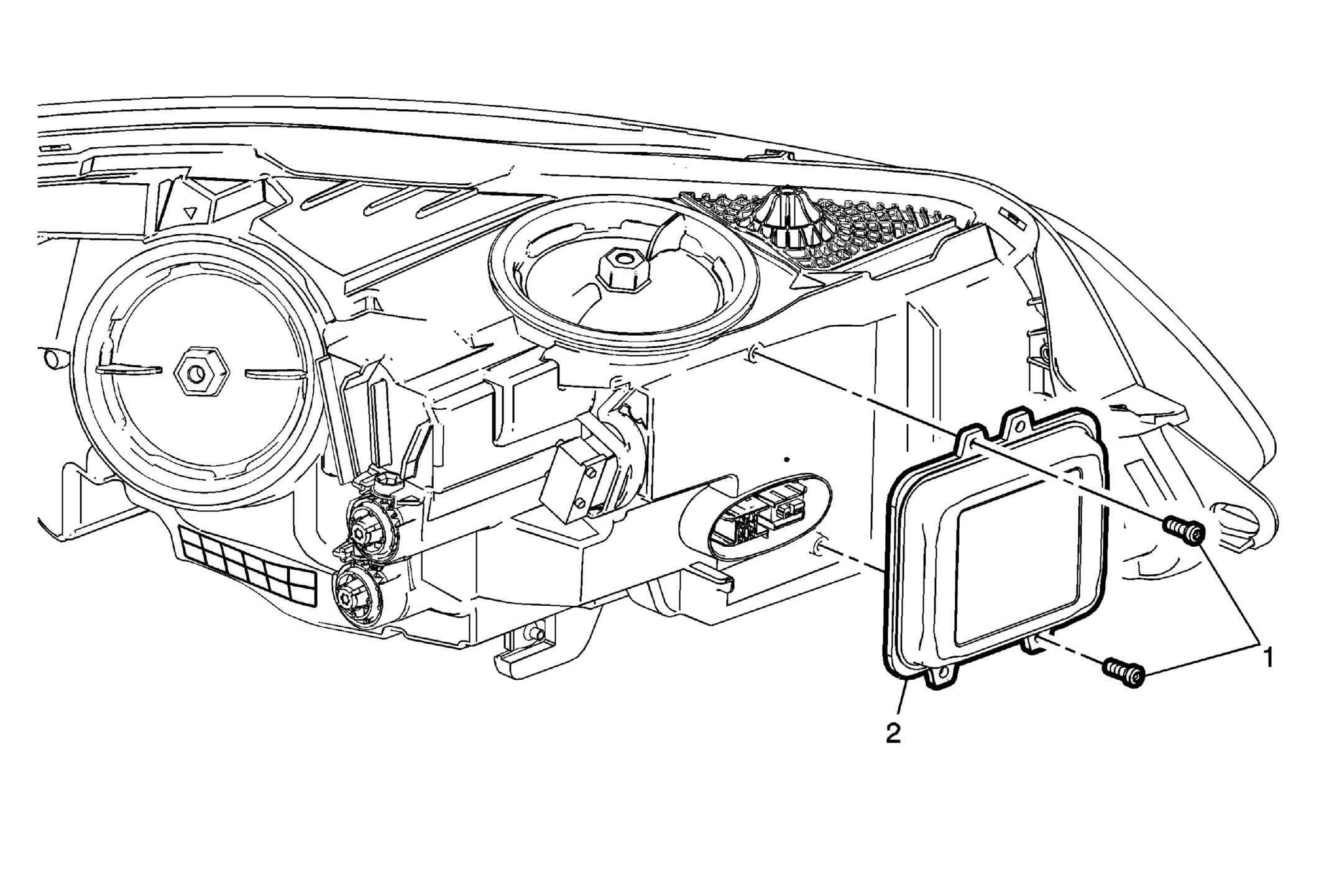

Fig 1: Headlamp Ballast

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the headlamp. Refer to Headlamp Replacement .
1	Headlamp Ballast Bolt (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Headlamp Ballast
