Front Fog Lamp Replacement

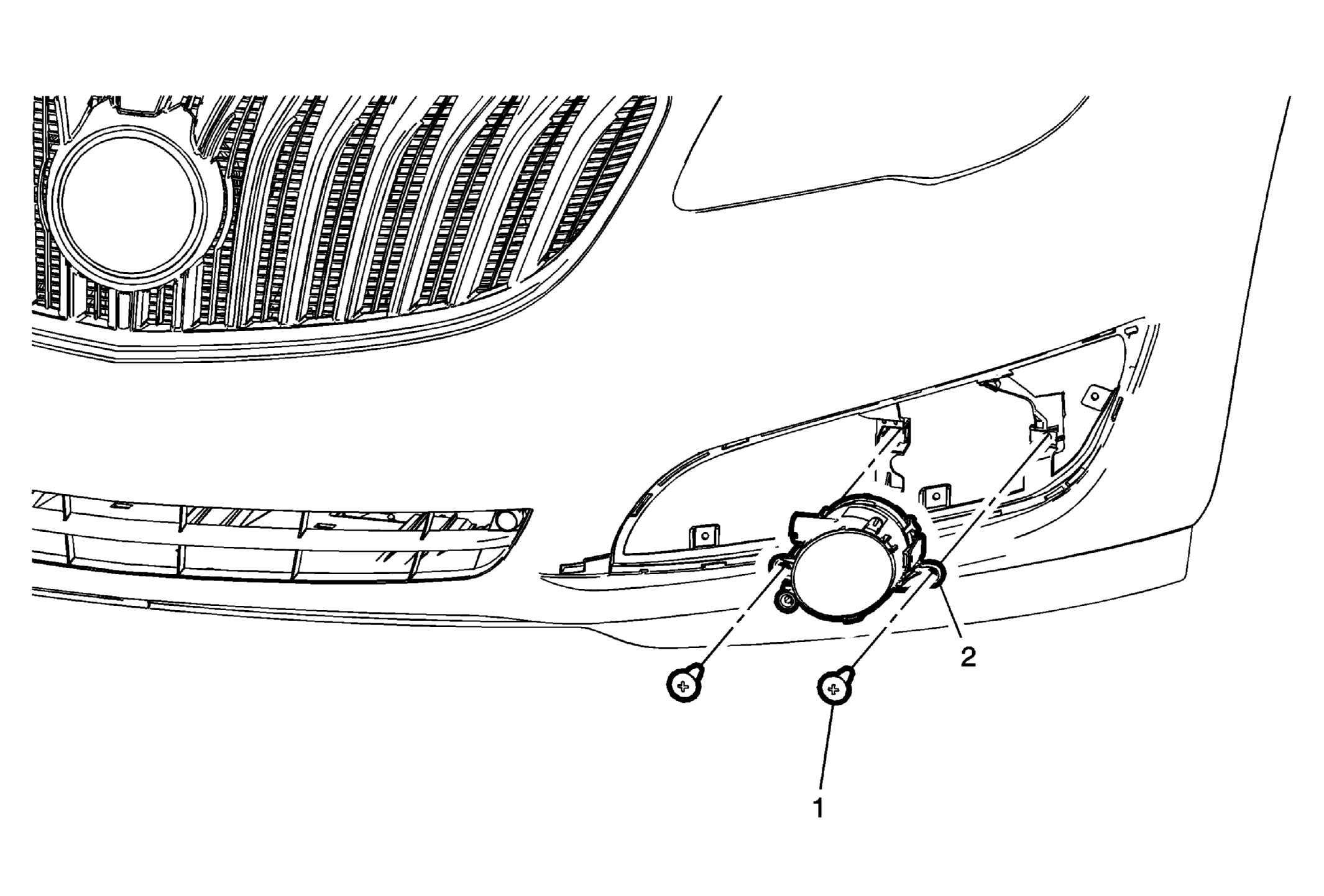

Fig 1: Front Fog Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia outer insert. Refer to Front Bumper Fascia Outer Insert Replacement .
1	Front Fog Lamp Bolt (Qty:2) CAUTION: Refer to Fastener Caution .
2	Front Fog Lamp Procedure Disconnect the electrical connector. Pull the front fog lamp straight forward from the front bumper fascia. Aim the front fog lamp after replacement. Refer to Fog Lamp Aiming .

Callout

Component Name

Preliminary Procedure
Remove the front bumper fascia outer insert. Refer to Front Bumper Fascia Outer Insert Replacement .

Front Fog Lamp Bolt (Qty:2)

CAUTION:

Front Fog Lamp

Procedure
