Radio Rear Compartment Speaker Replacement

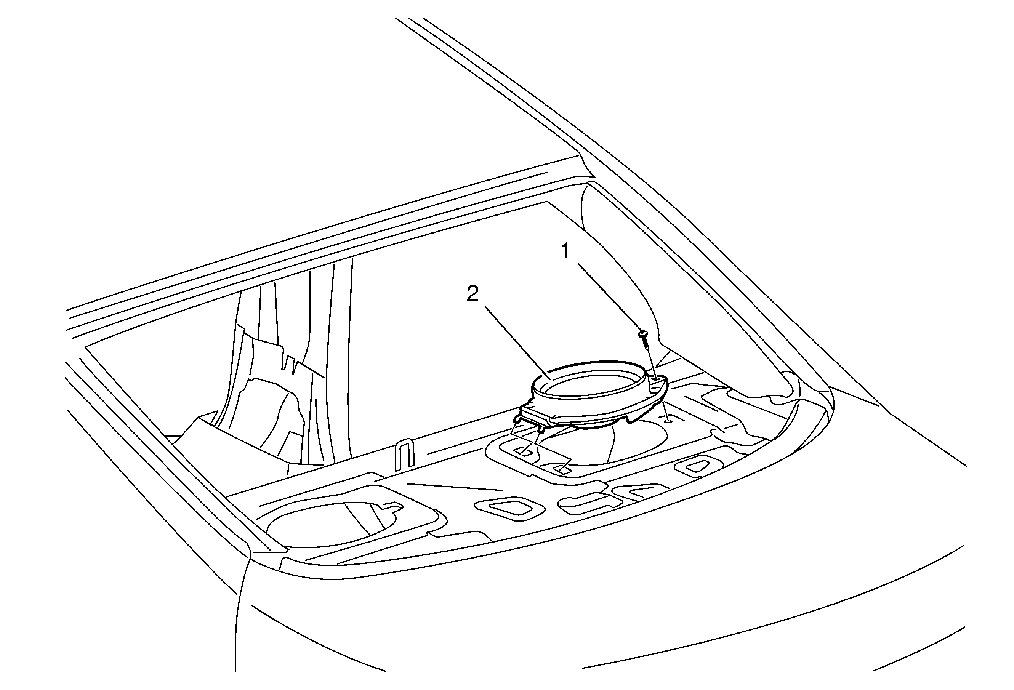

Fig 1: Radio Rear Compartment Speaker & Fastener

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement .
1	Radio Rear Compartment Speaker Fastener CAUTION: Refer to Fastener Caution .
2	Radio Rear Compartment Speaker Procedure  Disconnect the radio rear compartment speaker electrical connector.
