Radio Front Speaker Replacement

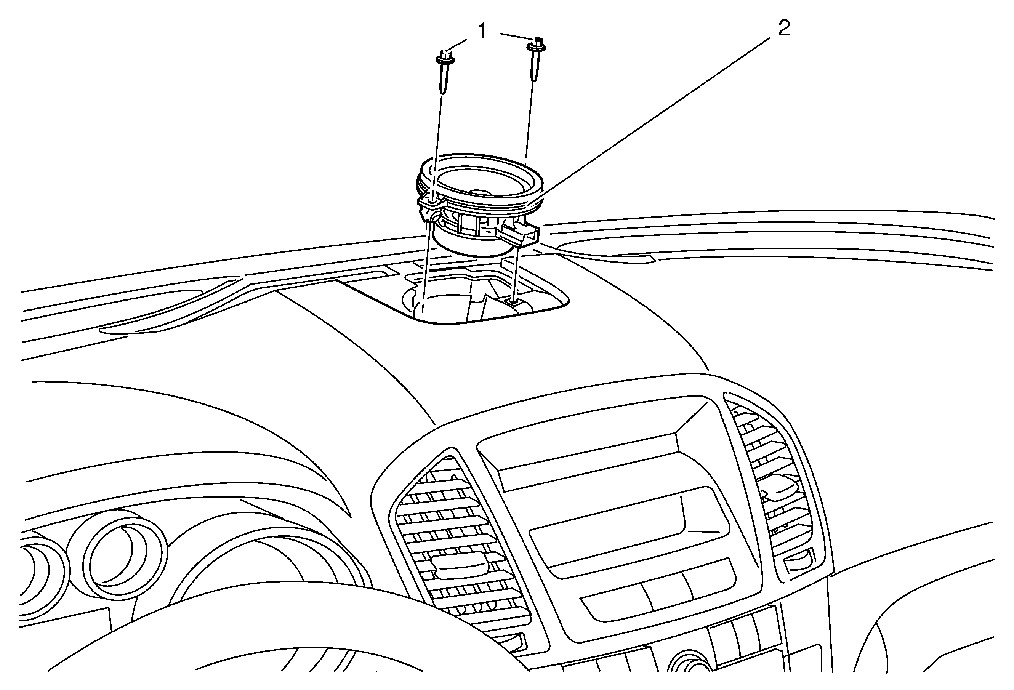

Fig 1: Radio Front Speaker & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the windshield defroster nozzle grille. Refer to Windshield Defroster Nozzle Grille Replacement .
1	Radio Front Speaker Fastener (Qty:2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radio Front Speaker Procedure Disconnect the electrical connector.
