Windshield Defroster Nozzle Grille Replacement

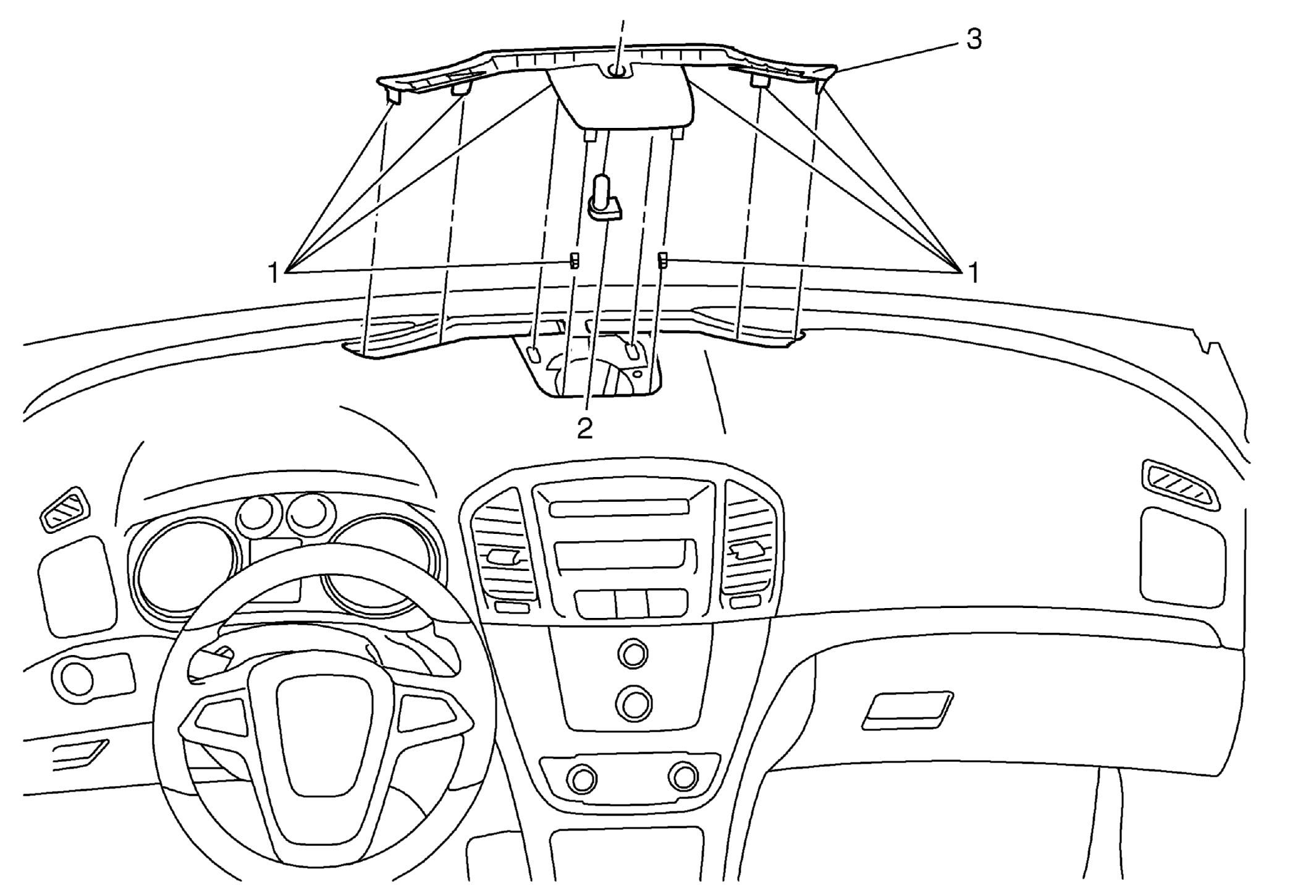

Fig 1: Windshield Defroster Nozzle Grille, Ambient Light Sensor & Retainers

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Windshield Defroster Nozzle Grille Retainer (Qty:8) Procedure Use a flat-bladed plastic trim tool to aid in the removal of the windshield defroster nozzle grille. Disconnect the electrical connections.
2	Sun Load Temperature and Headlamp Automatic Control Ambient Light Sensor
3	Windshield Defroster Nozzle Grille

Callout

Component Name

Windshield Defroster Nozzle Grille Retainer (Qty:8)

Procedure

Use a flat-bladed plastic trim tool to aid in the removal of the windshield defroster nozzle grille.
Disconnect the electrical connections.

Sun Load Temperature and Headlamp Automatic Control Ambient Light Sensor

Windshield Defroster Nozzle Grille
