Rear Compartment Side Trim Panel Replacement (HP6, Left Side)

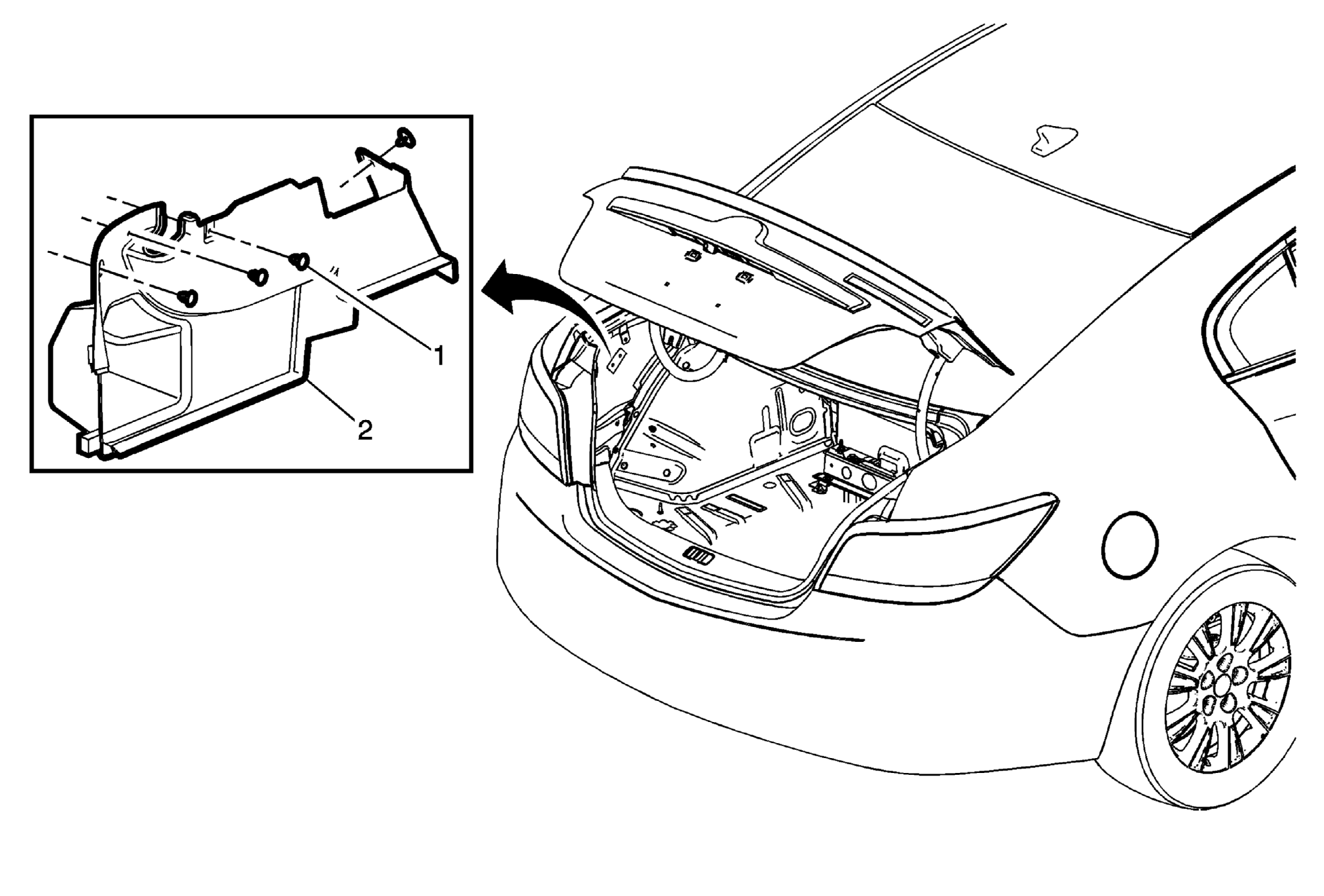

Fig 1: Rear Compartment Side Trim Panel (HP6, Left Side)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment floor panel trim (with battery cover, HP6) Refer to Rear Compartment Floor Panel Trim Replacement (With Battery Cover, HP6) . Fold down rear seat to access retainer.
1	Rear Compartment Side Trim Panel Retainer (Qty:4)
2	Rear Compartment Side Trim Panel Assembly

Callout

Component Name

Preliminary Procedure

Remove the rear compartment floor panel trim (with battery cover, HP6) Refer to Rear Compartment Floor Panel Trim Replacement (With Battery Cover, HP6) .
Fold down rear seat to access retainer.

Rear Compartment Side Trim Panel Retainer (Qty:4)

Rear Compartment Side Trim Panel Assembly
