Steering Column Upper Trim Cover Replacement

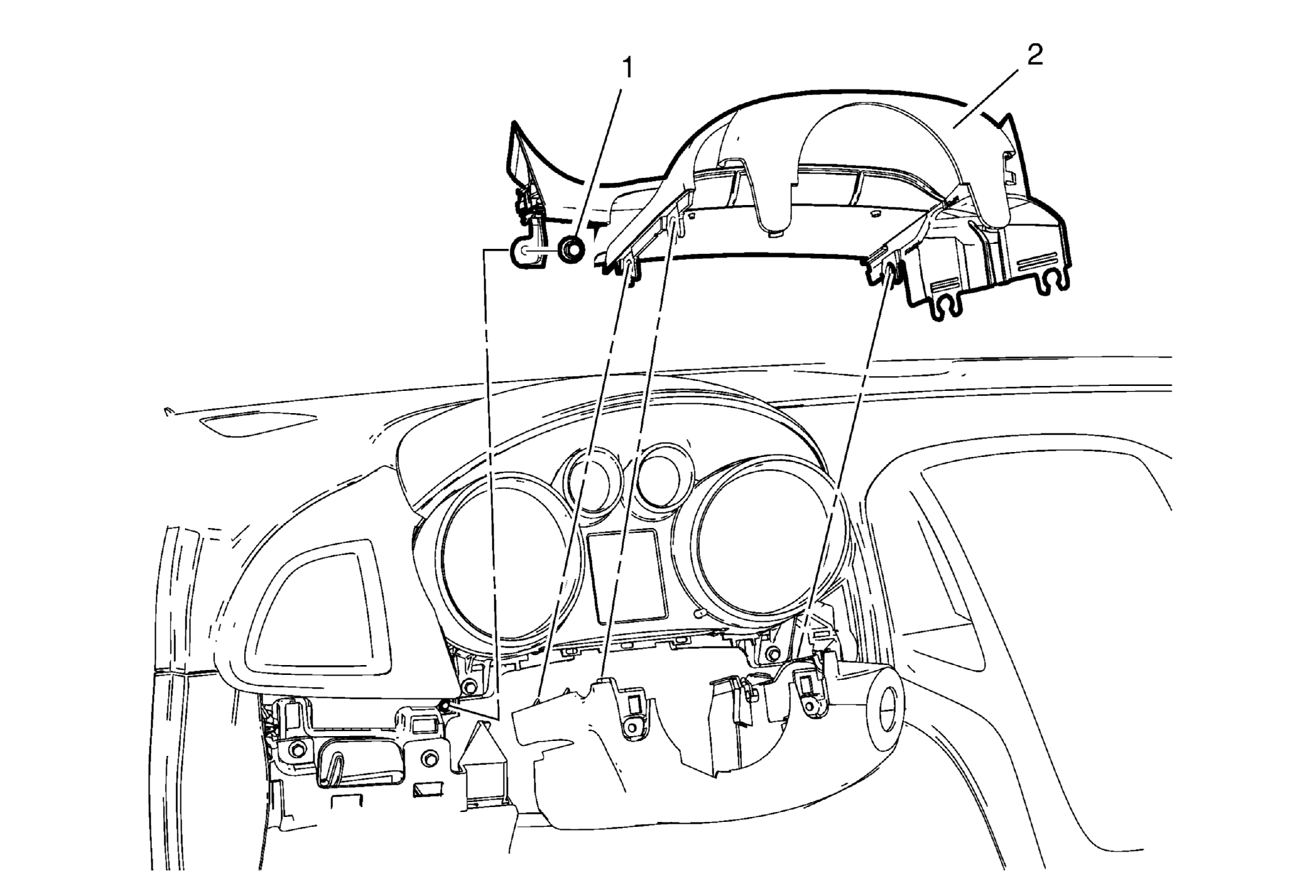

Fig 1: Steering Column Upper Trim Cover
GM2791277Courtesy of GENERAL MOTORS COMPANY
Steering Column Upper Trim Cover Replacement

Callout Component Name

Preliminary Procedures

  1. Disable the SIR system. Refer to SIR Disabling and Enabling
  2. Remove the headlamp switch molding. Refer to Headlamp Switch Molding Replacement .
1 Steering Column Upper Trim Cover Bolt
CAUTION:

Refer to Fastener Caution .
2 Steering Column Upper Trim Cover
NOTE:

The graphic above shows the steering column upper trim cover removal and installation procedure without a mounted steering wheel for better visualization.

Procedure

  1. Unclip the steering column upper trim cover from the steering column lower trim cover.
  2. Disengage the steering column upper trim cover flexible part from instrument cluster.
  3. Carefully pull plastic part rearward from instrument cluster.
