Headlamp Switch Molding Replacement

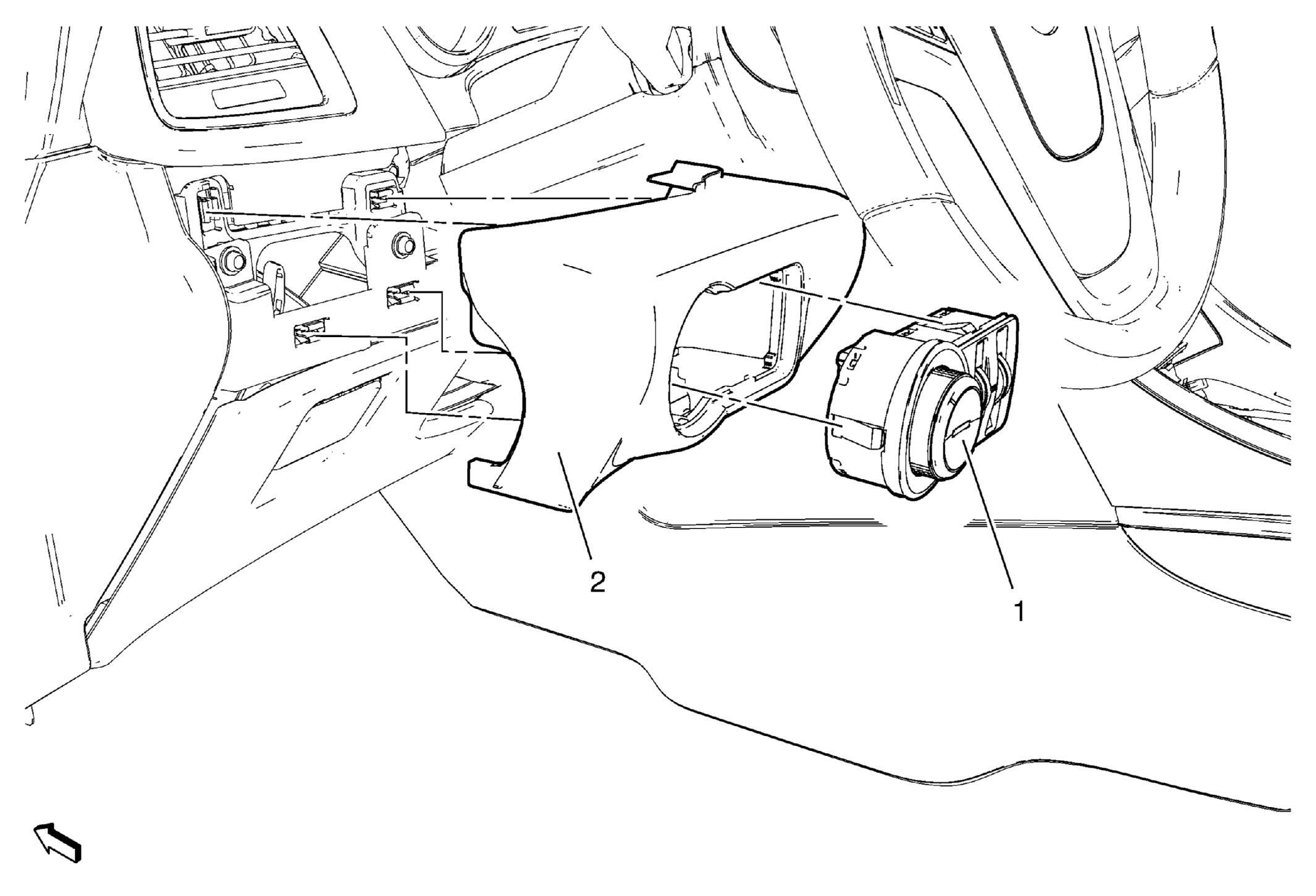

Fig 1: Headlamp Switch & Molding
GM2191228Courtesy of GENERAL MOTORS COMPANY
Headlamp Switch Molding Replacement

Callout Component Name
1 Headlamp Switch
Procedure
Open instrument panel outer compartment and disconnect electrical connector.
2 Headlamp Switch Molding
