Instrument Panel Ashtray Housing Replacement

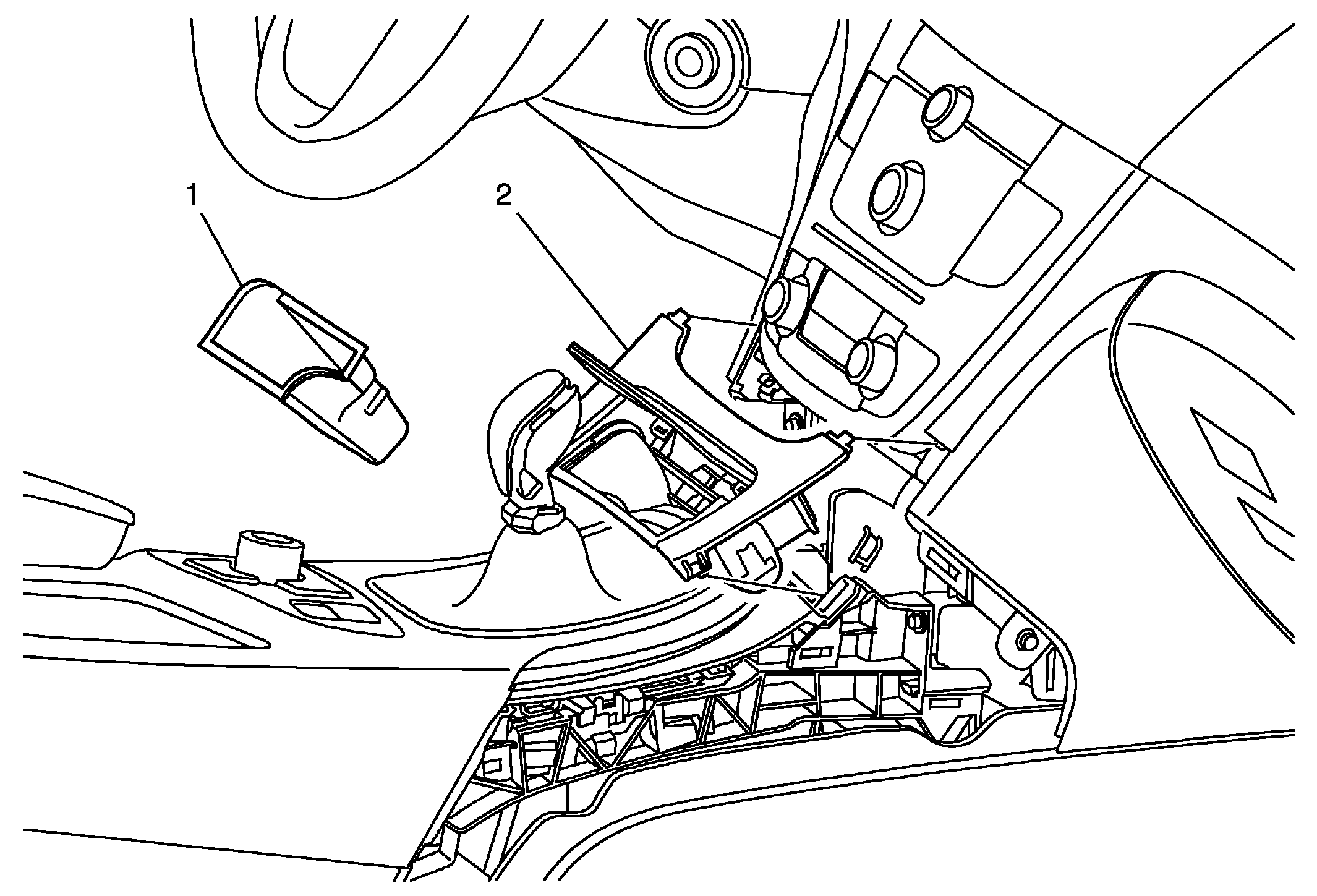

Fig 1: Instrument Panel Ashtray Housing

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove both front floor console extension panels. Refer to Front Floor Console Extension Panel Replacement .
1	Ashtray
2	Instrument Panel Ashtray Housing Procedure Use a flat-bladed plastic trim tool to release the I/P ashtray housing from the instrument panel. Disconnect the electrical connections. If replacing the I/P panel ashtray housing, transfer all necessary components.

Callout

Component Name

Preliminary Procedures
Remove both front floor console extension panels. Refer to Front Floor Console Extension Panel Replacement .

Ashtray

Instrument Panel Ashtray Housing

Procedure

Use a flat-bladed plastic trim tool to release the I/P ashtray housing from the instrument panel.
Disconnect the electrical connections.
If replacing the I/P panel ashtray housing, transfer all necessary components.
