Front Bumper Fascia Support Replacement (Right Side)
Front Bumper Fascia Support Replacement (Right Side)

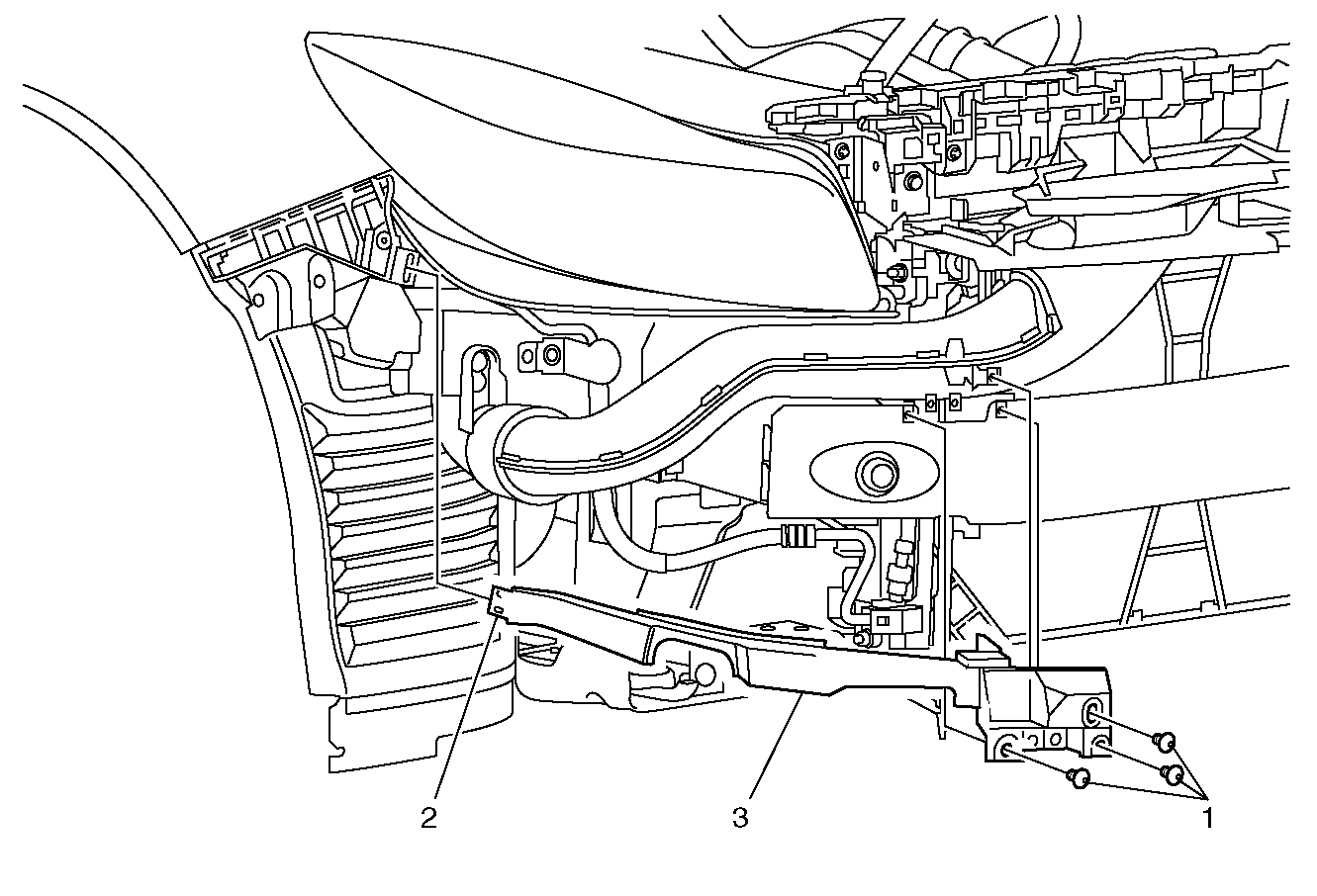

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . |
|
| 1 | Front Bumper Fascia Bracket Support Fastener (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 2 N.m (18 lb in) |
| 2 | Front Bumper Fascia Bracket Support Retainer |
| 3 | Front Bumper Fascia Bracket Support Procedure Using a small flat-bladed tool, release the one outer locking retainer from the front bumper fascia outer bracket support. |
