Front Bumper Fascia Replacement

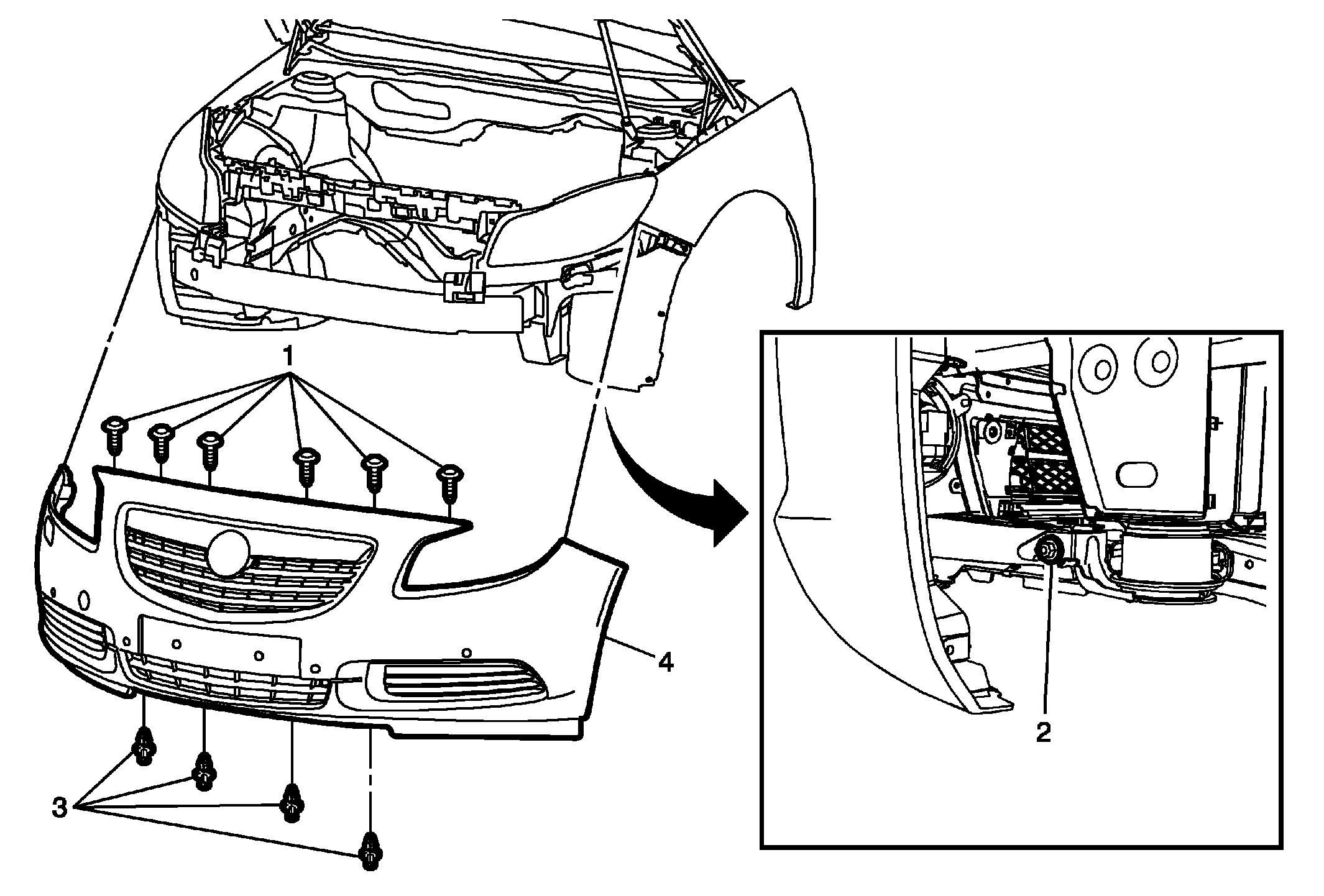

Fig 1: Front Bumper Fascia And Fasteners
GM2019594Courtesy of GENERAL MOTORS COMPANY
Front Bumper Fascia Replacement

Callout Component Name
Preliminary Procedure
Remove the front wheelhouse front liners. Refer to Front Wheelhouse Front Liner Replacement .
1 Front Bumper Fascia Top Fastener (Qty: 6)
CAUTION:

Refer to Fastener Caution .
2 Front Bumper Fascia Lower Impact Bar Rear Bolt (Qty: 2)
Procedure
If equipped, loosen the lower front fascia impact bar rear bolts. Do not remove.
Tighten
25 N.m (18 lb ft)
3 Front Bumper Fascia Plastic Retainer (Qty: 4)
4 Front Bumper Fascia

Procedure

  1. Release the front fascia from the left and right fascia supports.
  2. Disconnect any electrical connectors.
  3. Transfer components as necessary.
