Front Bumper Fascia Support Replacement (Left Side)
Front Bumper Fascia Support Replacement (Left Side)

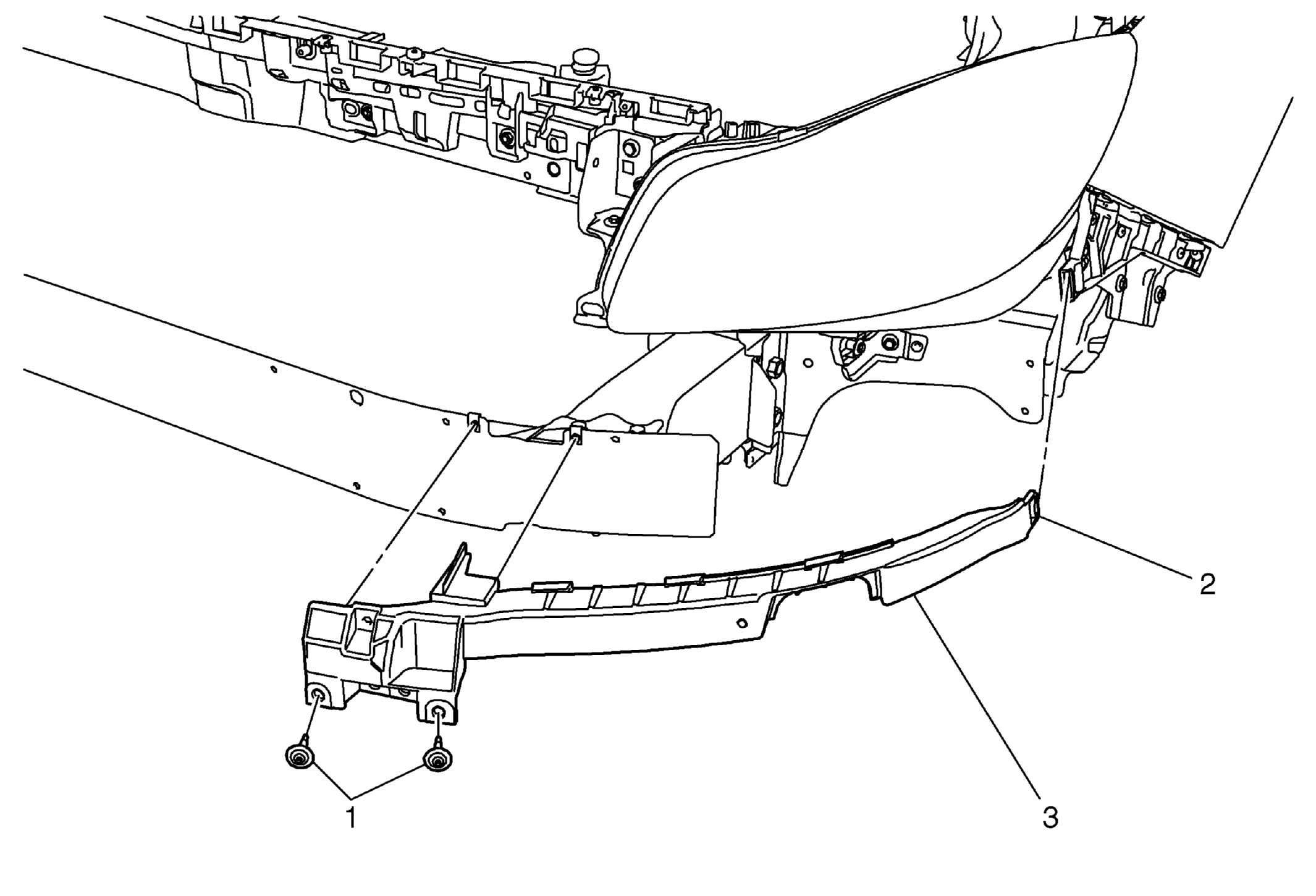

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement |
|
| 1 | Front Bumper Fascia Support Fastener (Qty: 2) |
| 2 | Front Bumper Fascia Support Retainer Procedure Using a small flat-bladed tool, release the one outer locking retainer from the front bumper fascia outer bracket support. |
| 3 | Front Bumper Fascia Support |
