Headlamp Switch Replacement

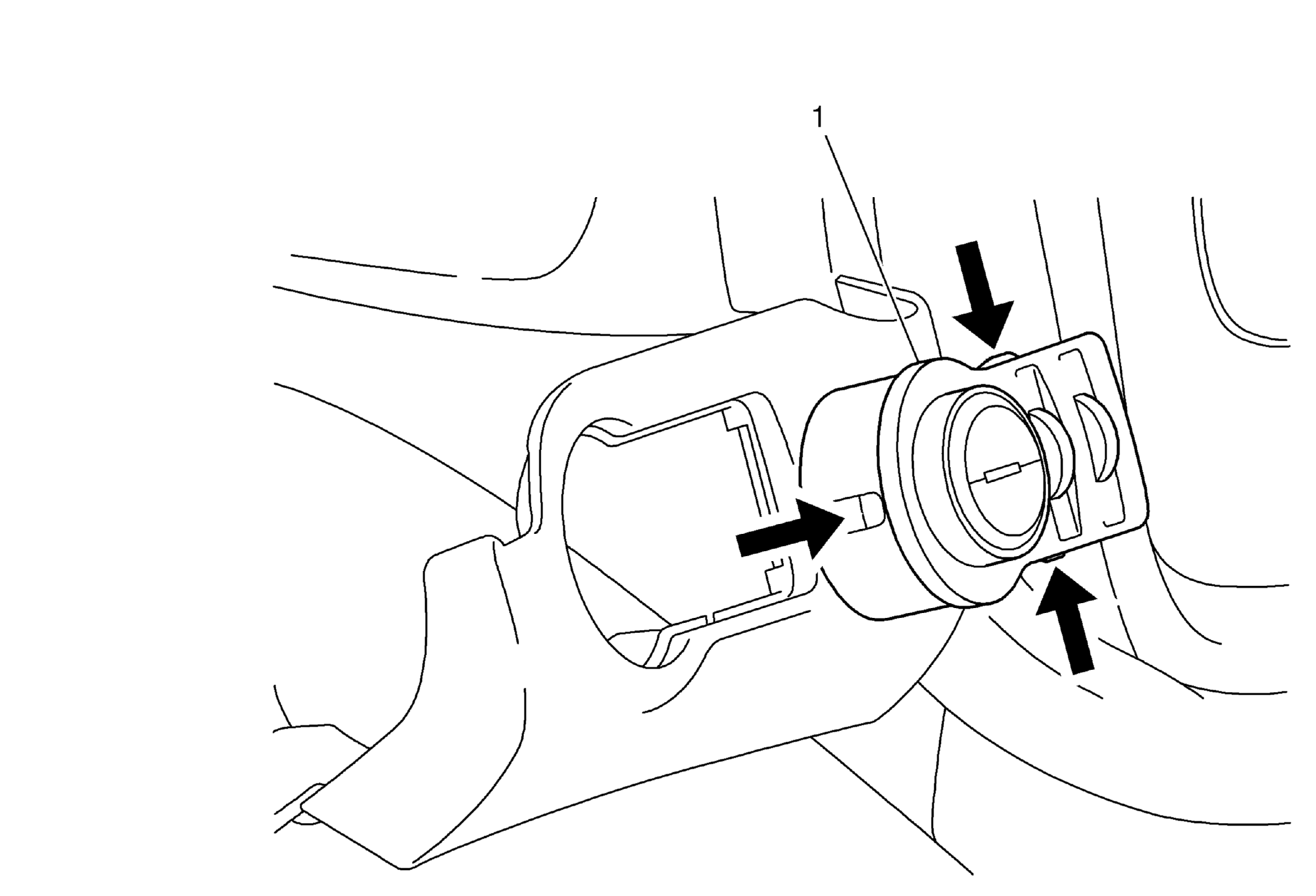

Fig 1: Headlamp Switch
GM2193983Courtesy of GENERAL MOTORS COMPANY
Headlamp Switch Replacement

Callout Component Name
Preliminary Procedure
Remove the instrument panel headlamp switch molding. Refer to Headlamp Switch Molding Replacement .
1 Headlamp Switch
Procedure
Disconnect the electrical connector.
TIP:  Use a flat-bladed plastic trim tool in order to release the retaining clips.
