Front Side Turn Signal Lamp Replacement

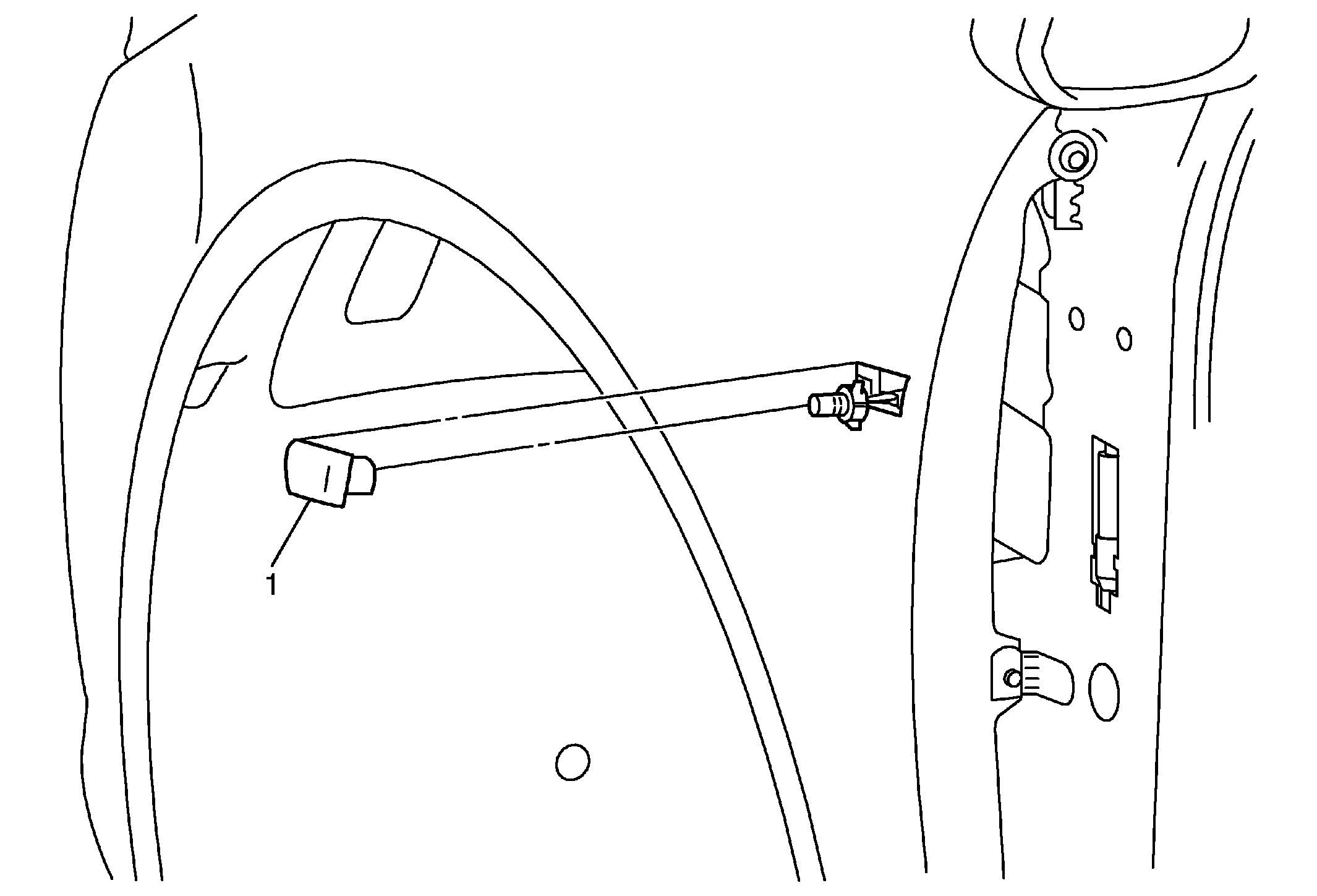

Fig 1: Front Side Turn Signal Lamp
GM2019763Courtesy of GENERAL MOTORS COMPANY
Front Side Turn Signal Lamp Replacement

Callout Component Name

Preliminary Procedures

  1. Remove the front wheelhouse rear liner. Refer to Front Wheelhouse Rear Liner Replacement .
  2. Disconnect the front side turn signal lamp electrical connector.
  3. Squeeze the lamp housing locking retainer and push outward in order to remove the front side turn signal lamp from the fender panel.
1 Front Side Turn Signal Lamp
TIP:  Replace the bulb, as needed.
