Front Wheelhouse Rear Liner Replacement
Front Wheelhouse Rear Liner Replacement

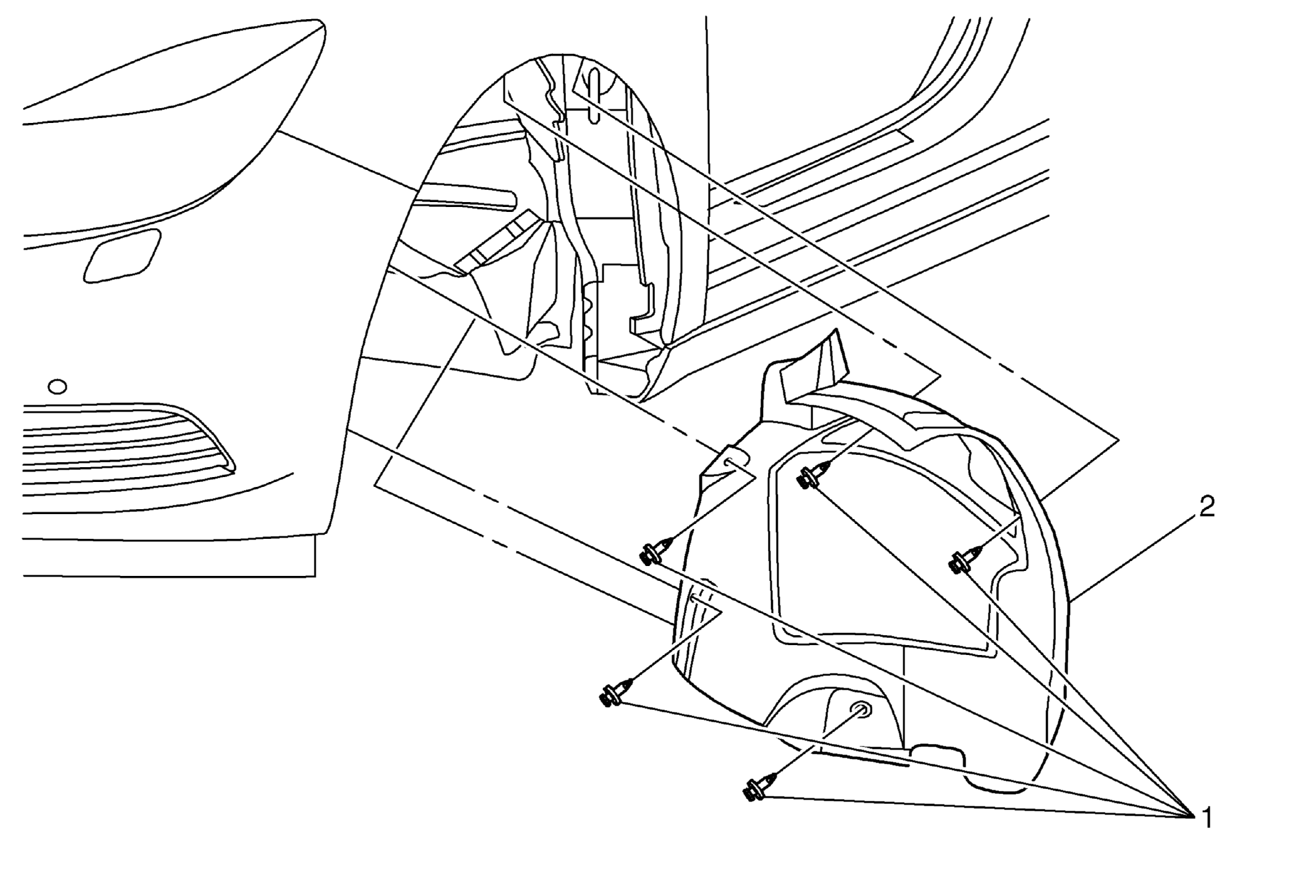

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation . |
|
| 1 | Front Wheelhouse Rear Liner Retainer (Qty: 5) Procedure Use a BO-569-A lifter to aid in the removal of the front wheelhouse rear liner. Special Tools BO-569-A Plug Lifter For equivalent regional tools, refer to Special Tools . |
| 2 | Front Wheelhouse Rear Liner |
