Front Bumper Fascia Outer Insert Molding Replacement

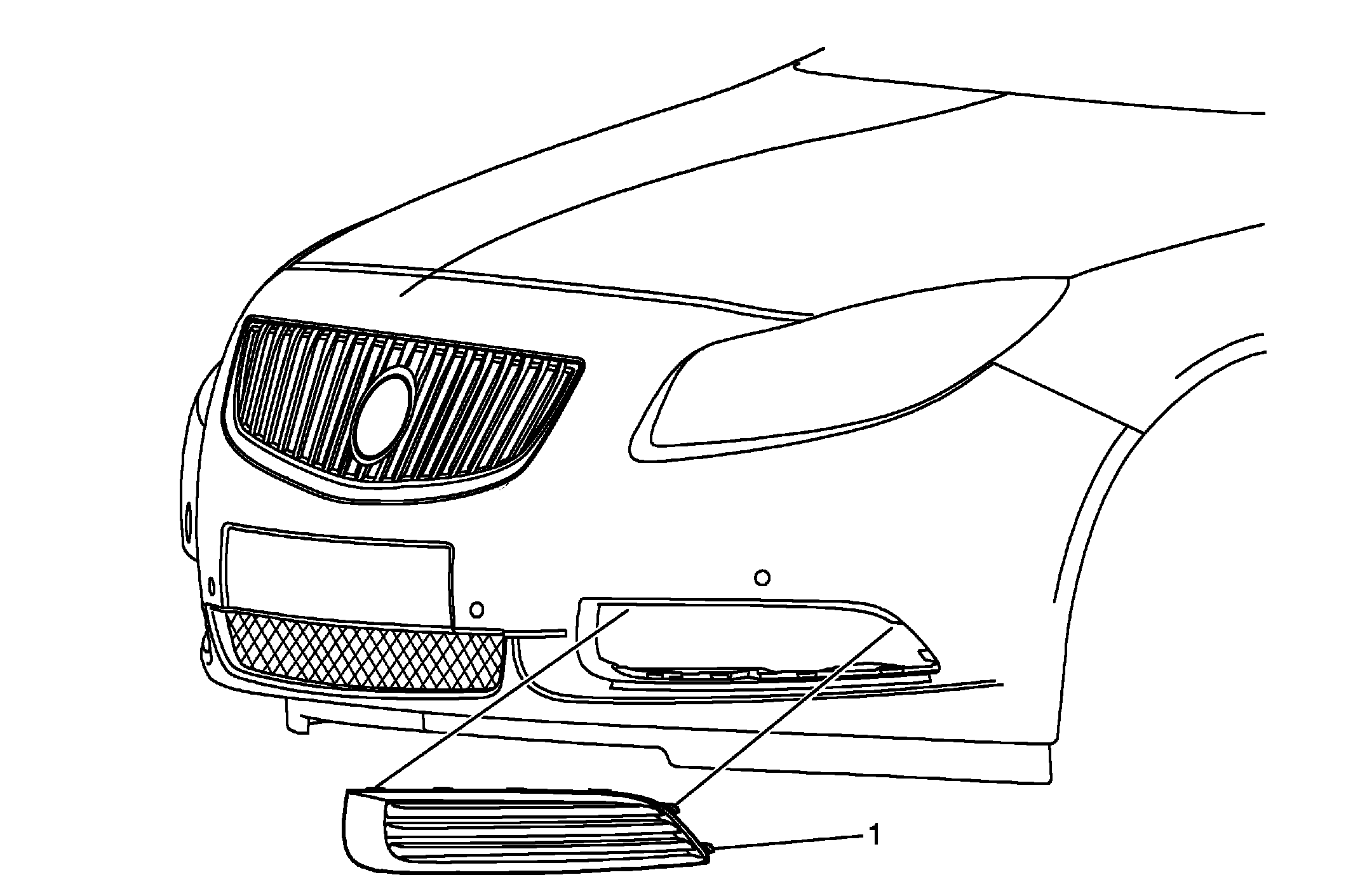

Fig 1: Front Bumper Fascia Outer Insert Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front wheelhouse front liner in order to access the outer insert molding locking tabs. Refer to Front Wheelhouse Front Liner Replacement .
1	Front Bumper Fascia Outer Insert Molding Procedure Using a small flat-bladed tool, pull and release the outer front bumper fascia locking retainer from the front bumper fascia outer insert molding lower grille. Release the 11 flat locking tabs from the front bumper fascia. Push the front bumper fascia outer insert molding lower grille outward from the front bumper fascia in order to remove.

Callout

Component Name

Preliminary Procedure
Remove the front wheelhouse front liner in order to access the outer insert molding locking tabs. Refer to Front Wheelhouse Front Liner Replacement .

Front Bumper Fascia Outer Insert Molding

Procedure

Using a small flat-bladed tool, pull and release the outer front bumper fascia locking retainer from the front bumper fascia outer insert molding lower grille.
Release the 11 flat locking tabs from the front bumper fascia.
Push the front bumper fascia outer insert molding lower grille outward from the front bumper fascia in order to remove.
