Liftgate Hinge Replacement

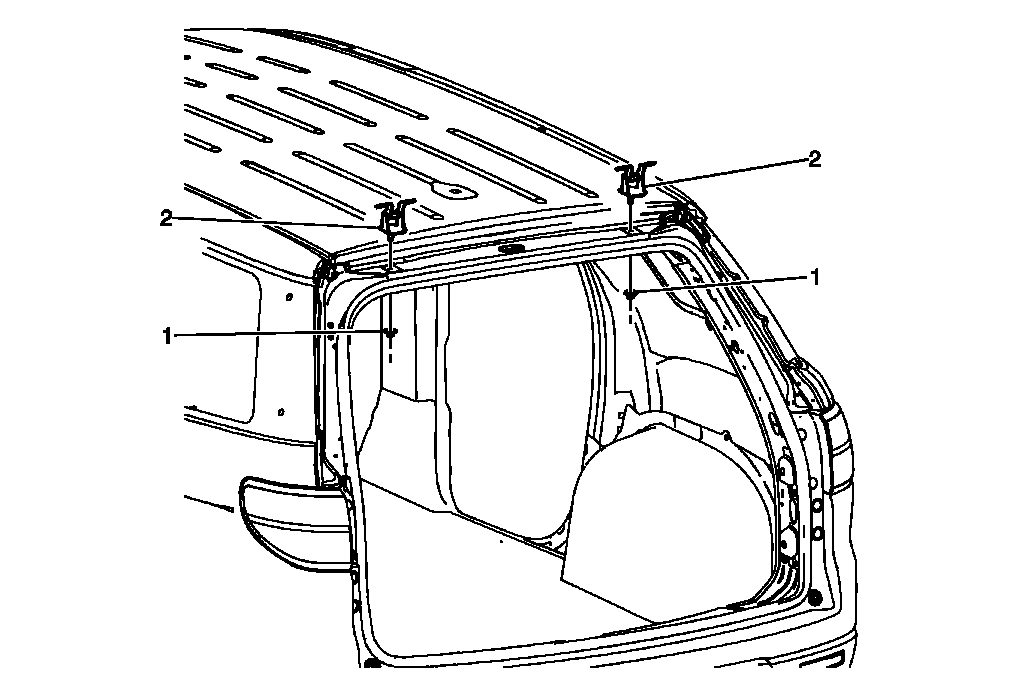

Courtesy of GENERAL MOTORS CORP. Liftgate Hinge Replacement
| Callout |
Component Name |
|
Preliminary Procedure
- Remove the liftgate. Refer to Liftgate Replacement .
- Drop the rear of the headliner to access the bolts. Refer to Headliner Replacement Headlining Trim Panel Replacement
- Use a grease pencil to mark the liftgate hinge position to the body prior to removal.
|
| 1 |
Liftgate Hinge Nut (Qty: 2)
Tighten
25 N.m (18 lb ft) |
| 2 |
Liftgate Hinge Procedure
- Adjust the liftgate if needed. Refer to Liftgate Adjustment .
- Inspect the hinge gasket and replace if damaged or torn.
|
