Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View Of Right Engine Mount
    GM1551853Courtesy of GENERAL MOTORS CORP.
  1. Remove the engine mount strut. Refer to Engine Mount Strut Replacement .
  2. Remove the right exhaust manifold. Refer to Exhaust Manifold Removal - Right Side .
  3. Remove the upper engine mount nuts.
  4. Install the engine support fixture. Refer to Engine Support Fixture .
  5. Using the engine support fixture, raise the engine.

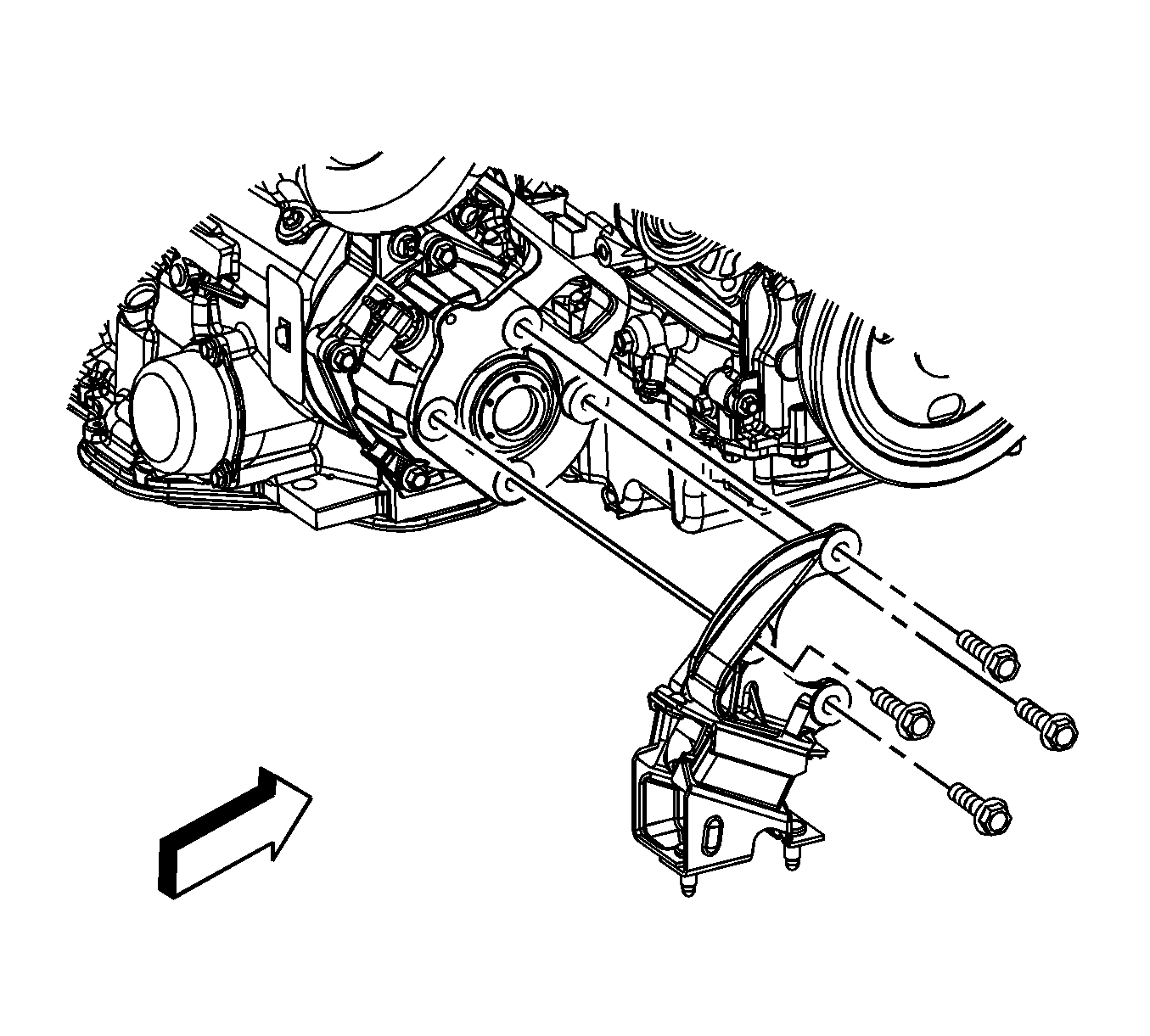

    6. Fig 2: View Of Engine Mount Bracket
    GM1551855Courtesy of GENERAL MOTORS CORP.
  6. Remove the engine mount bracket bolts.
  7. Remove the engine mount bracket.
  8. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

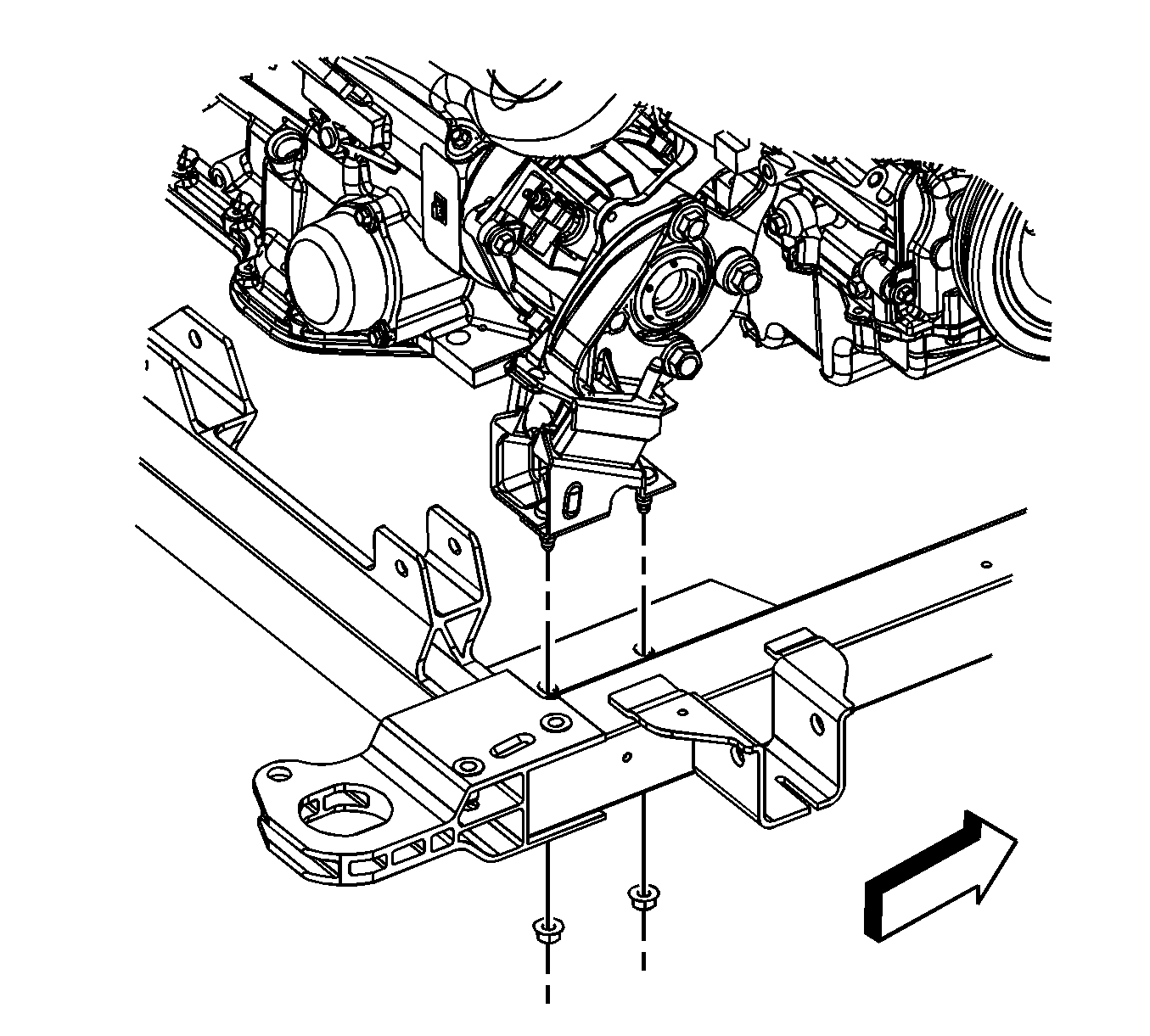

    9. Fig 3: View Of Engine Mount Bracket Nuts
    GM1551859Courtesy of GENERAL MOTORS CORP.
  9. Remove the lower engine mount nuts.
  10. Remove the engine mount.
