Exhaust Manifold Removal - Right Side

WARNING: This page is about a different variant/trim than selected.

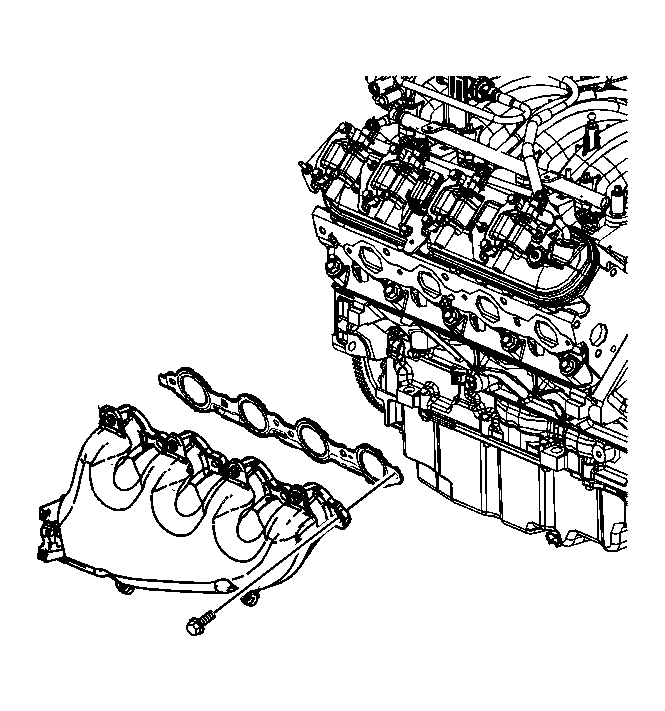

    Fig 1: View Of Right Exhaust Manifold
    GM1411888Courtesy of GENERAL MOTORS CORP.
  1. Remove the spark plug wires from the spark plugs.
  2. Remove the exhaust manifold, bolts, and gasket.
  3. Discard the gasket.
    4. Fig 2: View Of Heat Shield & Bolts
    GM1411890Courtesy of GENERAL MOTORS CORP.
  4. Remove the heat shield (603) and bolts (604) from the manifold (600), as required.
  5. Remove the studs (605), as required.
