Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View Of Lower Engine Mount
    GM1551856Courtesy of GENERAL MOTORS CORP.
  1. Remove the engine mount strut. Refer to Engine Mount Strut Replacement .
  2. Remove the left exhaust manifold. Refer to Exhaust Manifold Removal - Left Side .
  3. Remove the upper engine mount nuts.
  4. Install the engine support fixture. Refer to Engine Support Fixture .
  5. Using the engine support fixture, raise the engine.

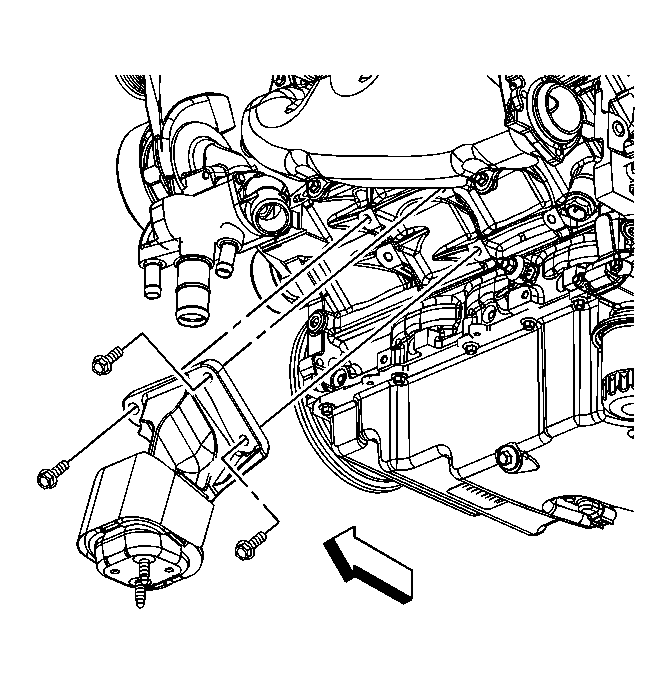

    6. Fig 2: View Of Lower Engine Mount & Bolts
    GM1551854Courtesy of GENERAL MOTORS CORP.
  6. Remove the engine mount bracket bolts.
  7. Remove the engine mount bracket.
