Exhaust Manifold Removal - Left Side

WARNING: This page is about a different variant/trim than selected.

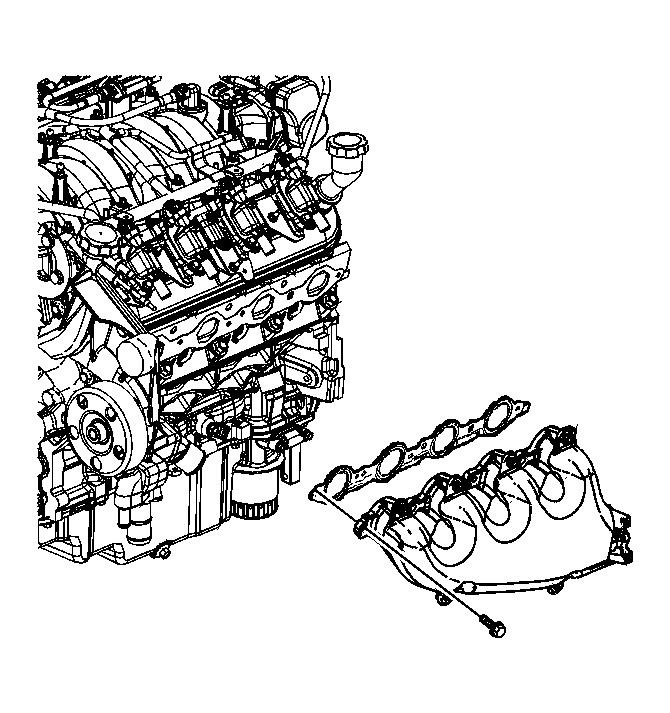

    Fig 1: View Of Left Exhaust Manifold
    GM1411880Courtesy of GENERAL MOTORS CORP.
  1. Remove the spark plug wires from the spark plugs.
  2. Remove the exhaust manifold, bolts, and gasket.
  3. Discard the gasket.
    4. Fig 2: Identifying Heat Shield & Bolts
    GM1411884Courtesy of GENERAL MOTORS CORP.
  4. Remove the heat shield (603) and bolts (604) from the manifold (600), as required.
  5. Remove the studs (605), as required.
