Instrument Cluster Replacement

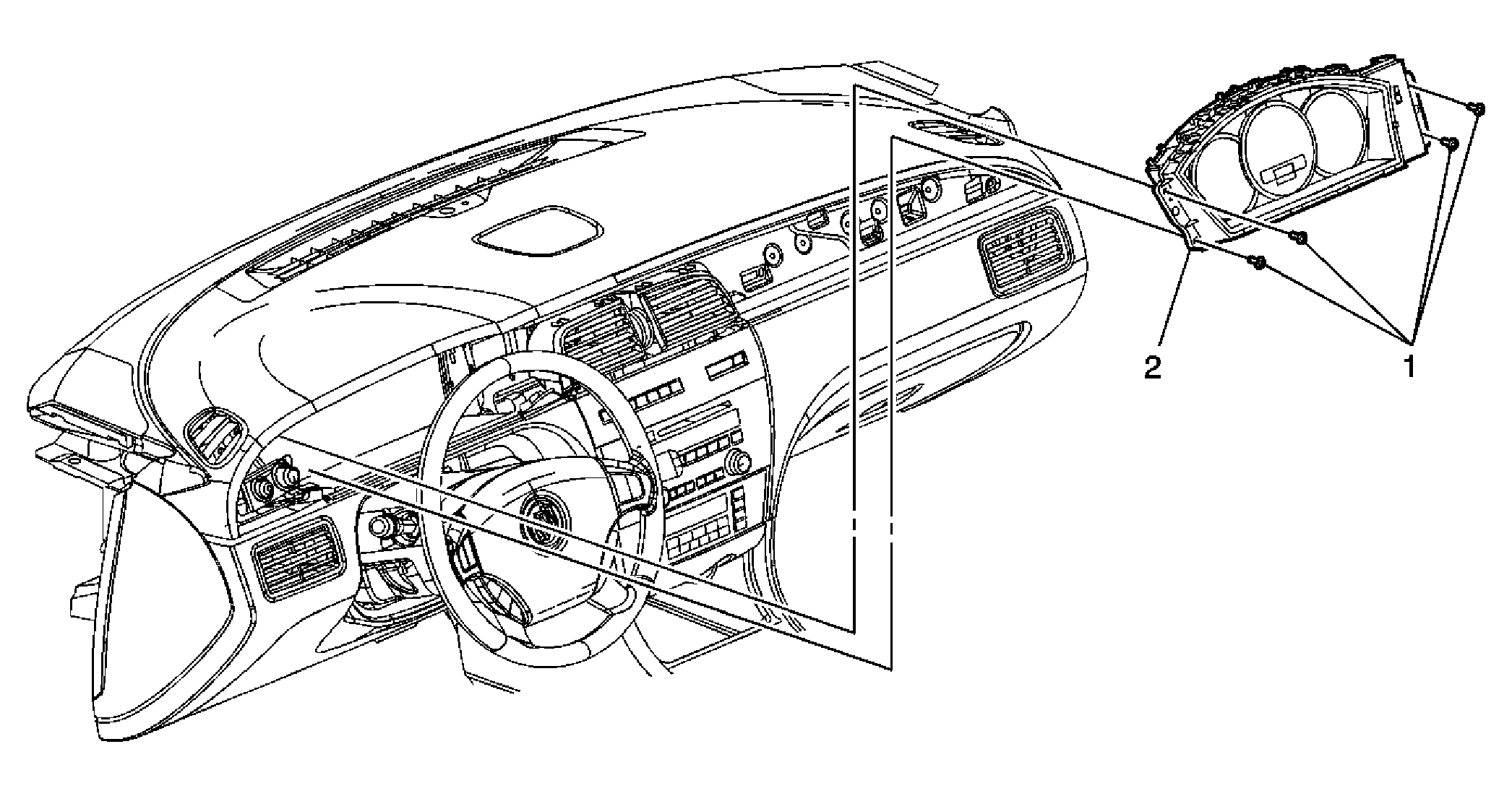

Fig 1: Identifying Instrument Panel Cluster (IPC)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the instrument panel cluster trim plate. Refer to Instrument Panel Cluster Trim Plate Bezel Replacement .
1	Instrument Panel Cluster Screw (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Instrument Panel Cluster Assembly Refer to Control Module References for programming and setup information.
