Instrument Panel Cluster Trim Plate Bezel Replacement

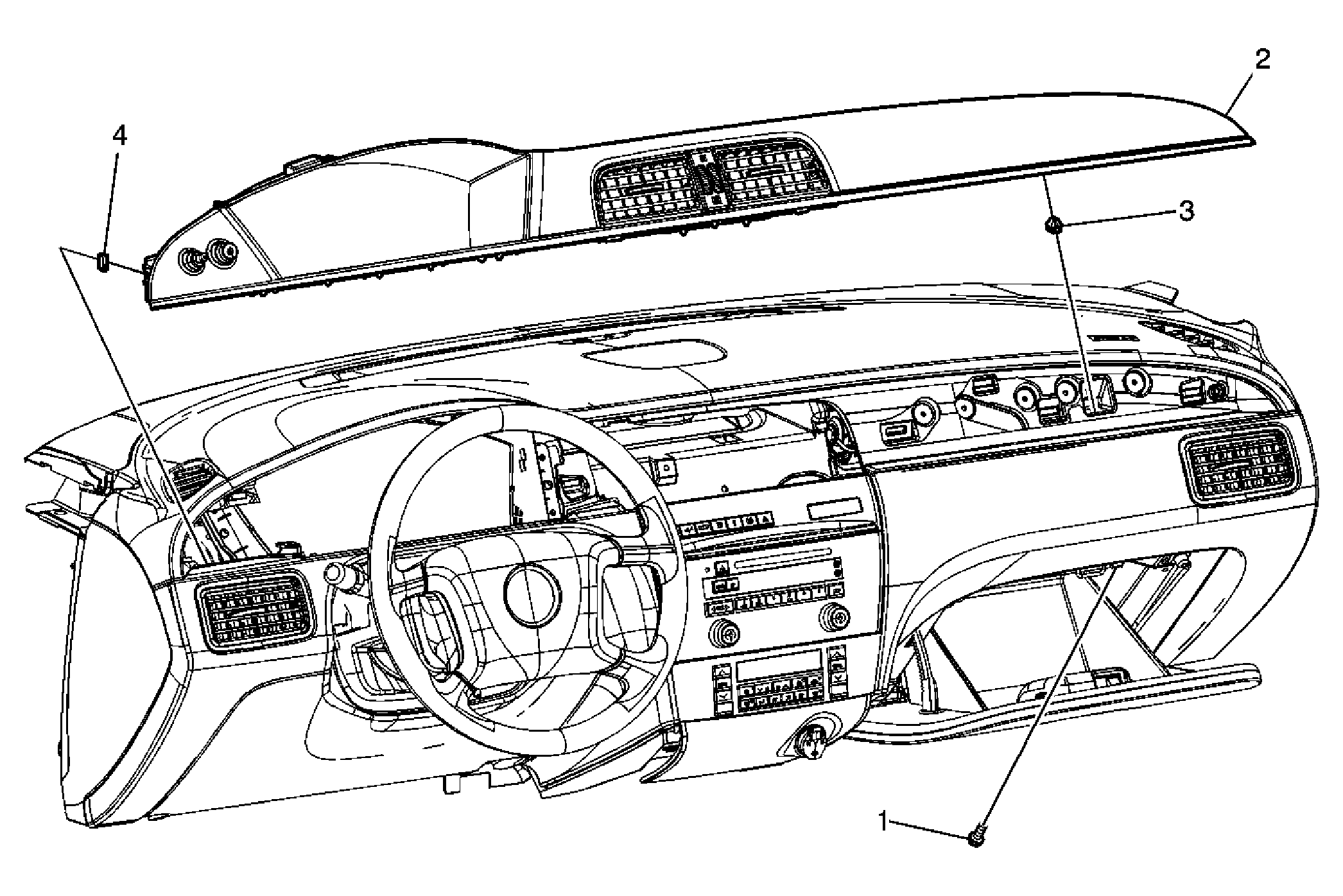

Fig 1: Identifying Instrument Panel (I/P) Cluster Trim Plate Bezel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Cluster Bezel Screws (Qty: 1) NOTE: Refer to Fastener Notice . Tip:  The screw can be accessed by opening the instrument panel compartment. Tighten:  2 N.m (18 lb in)
2	Instrument Panel Cluster Trim Plate Tip:  Pull the trim plate away from the instrument panel far enough to disconnect the headlamp switch electrical connector, then remove from the vehicle.
3	Cluster Trim Panel Nut (Qty: 1)
4	Instrument Panel Cluster Trim Plate Clips (Qty: 4)
