Front Bumper Fascia Replacement

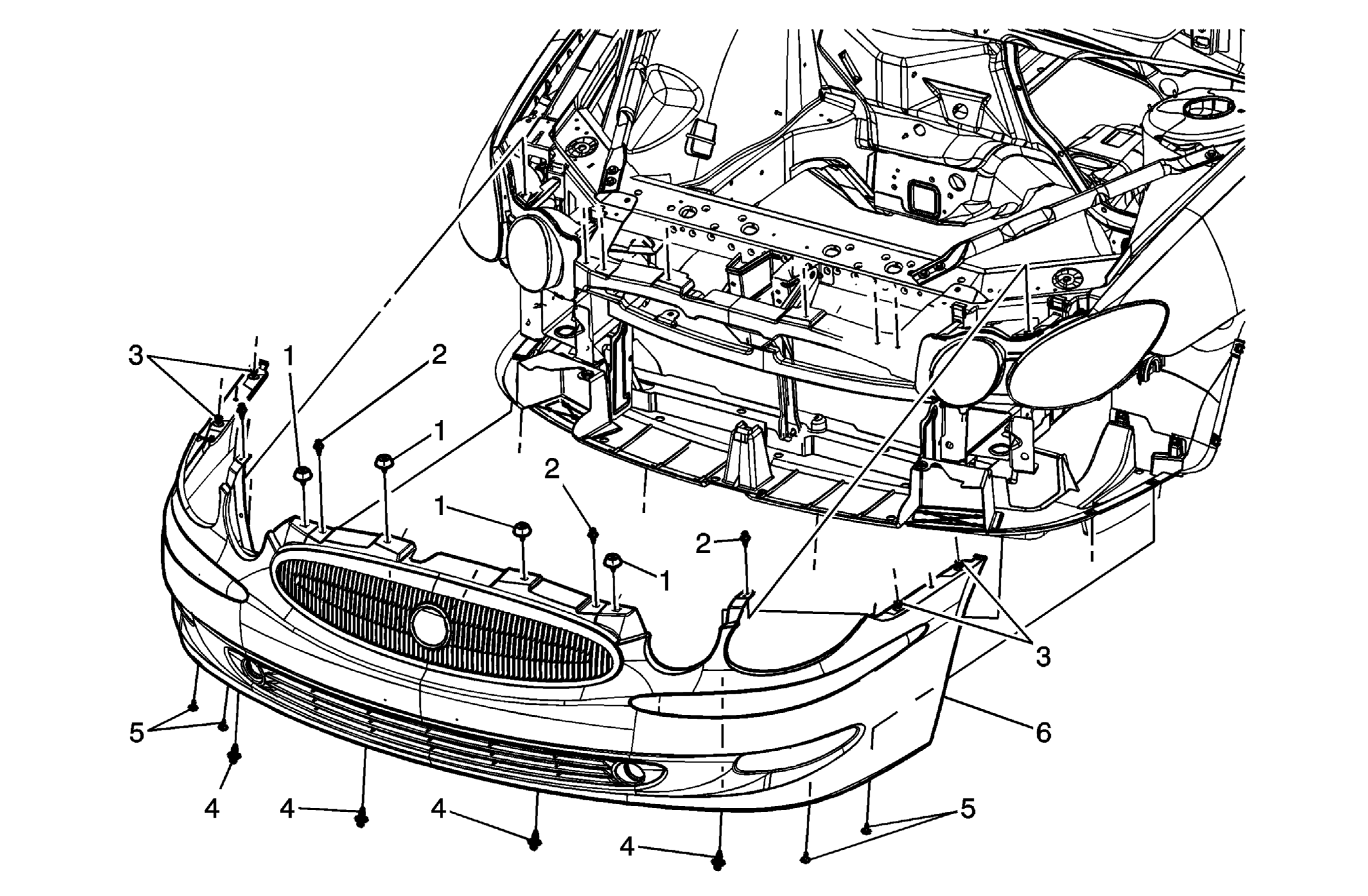

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front retainers from the front wheelhouse liners to the fascia. Refer to Front Fender Liner Replacement . |
|
| 1 | Front Fascia Push-In Retainer (Qty: 4) |
| 2 | Front Fascia Push-In Retainer (Qty: 4) |
| 3 | Front Fascia Nut (Qty: 6)
NOTE:
Refer to Fastener Notice
.
Tighten: 10 N.m (89 lb in) |
| 4 | Front Fascia Push-In Retainer (Qty: 4) |
| 5 | Front Fascia Screw (Qty: 4) Tighten: 2 N.m (18 lb in) |
| 6 | Front Bumper Fascia Tip: Disconnect the electrical connector. |
