Front Fender Liner Replacement

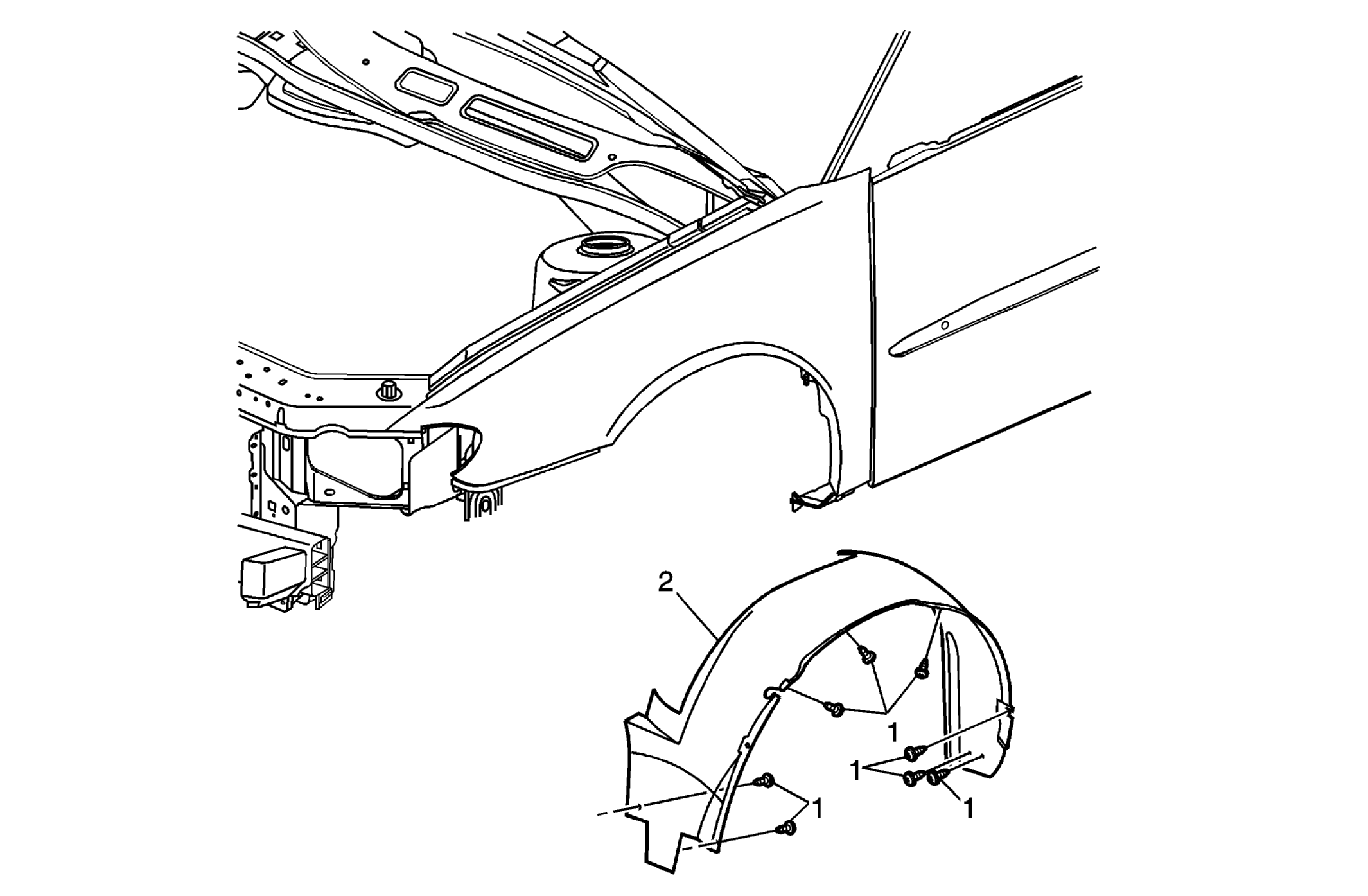

Fig 1: View Of Front Fender Liner

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Lift and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
1	Front Wheelhouse Liner Plastic Retainer (Qty: 10)
2	Front Wheelhouse Liner

Callout

Component Name

Preliminary Procedures

Lift and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .

Front Wheelhouse Liner Plastic Retainer (Qty: 10)

Front Wheelhouse Liner
