Headlamp Assembly or Headlamp Bulb Replacement

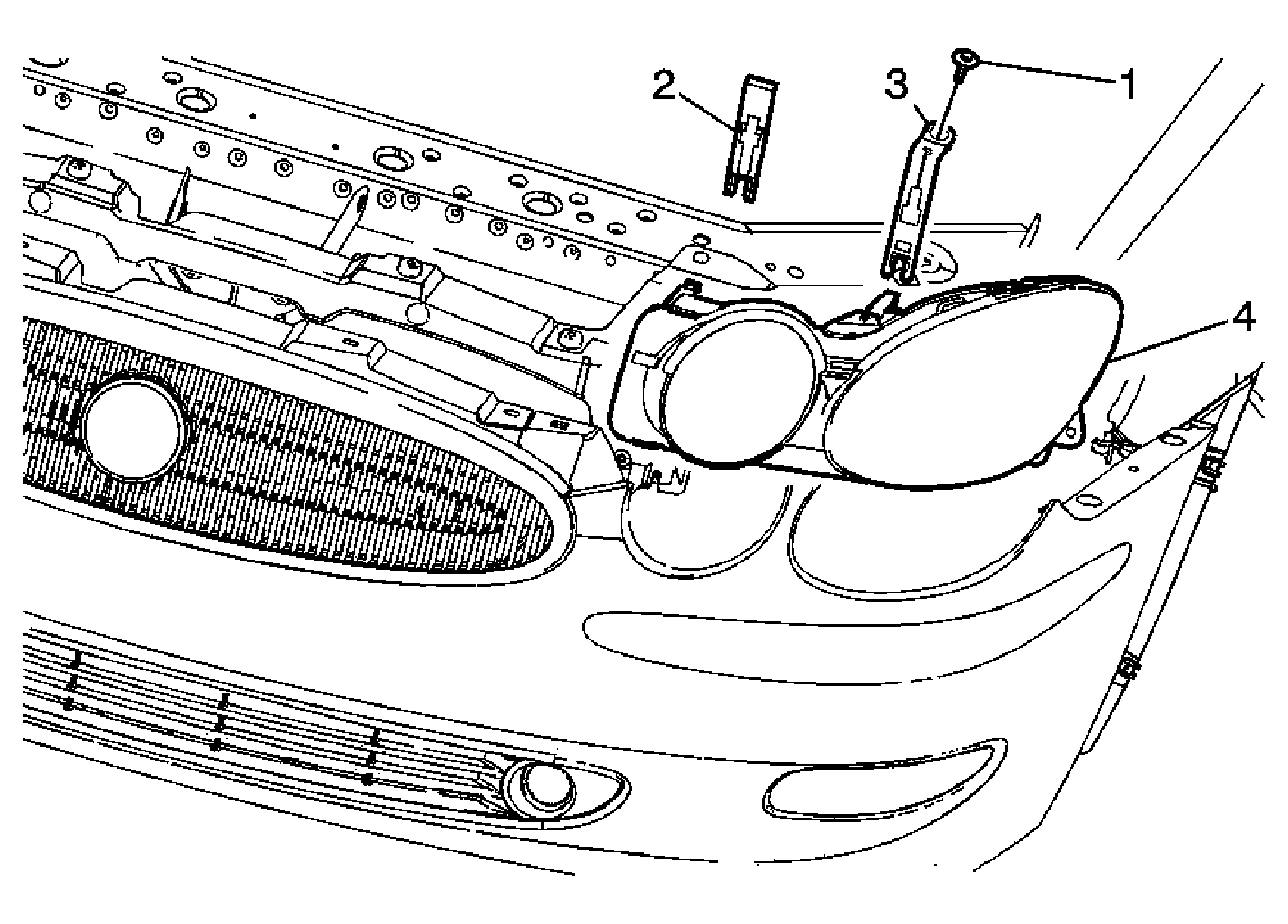

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Loosen either the LF or RF bumper fascia corner in order to flex the fascia when removing the headlamp assembly. Refer to Front Bumper Fascia Replacement . |
|
| 1 | Headlamp Retainer Bolt
NOTE:
Refer to Fastener Notice
.
Tighten: 10 N.m (89 lb in) |
| 2 | Headlamp Retainer Tip: Lift the retainer straight upward in order to release the headlamp assembly from the headlamp mounting panel. |
| 3 | Headlamp Retainer Tip: Lift the retainer straight upward in order to release the headlamp assembly from the headlamp mounting panel. |
| 4 | Headlamp Assembly Tip: Carefully pull the headlamp assembly forward and disconnect the electrical harness connector |
