Air Outlet Duct Replacement - Instrument Panel (I/P) - Upper Right

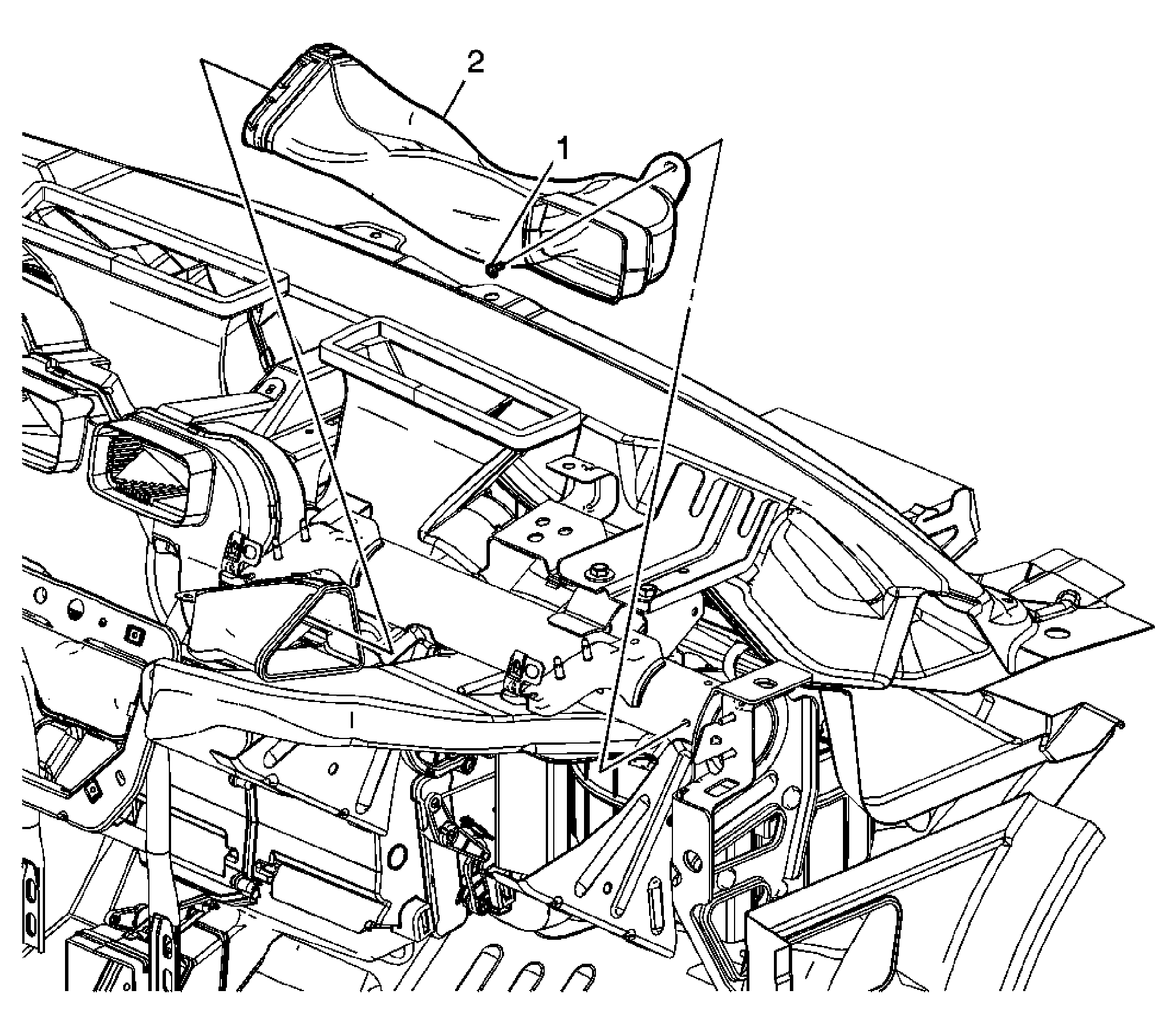

Fig 1: Removing/Installing Instrument Panel Outer Air Outlet Upper Duct - Right Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice Fastener Tightening Specifications: Refer to Fastener Tightening Specifications Preliminary Procedure Remove the instrument panel lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement Remove the inflatable restraint instrument panel module. Refer to Inflatable Restraint Instrument Panel Module Replacement
1	Air Distributor Outer Duct - Right, Screw Tighten: 1.0 N.m (9 lb in)
2	Air Distributor Outer Duct - Right

Callout

Component Name

NOTE: Refer to Fastener Notice

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications

Preliminary Procedure

Remove the instrument panel lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement
Remove the inflatable restraint instrument panel module. Refer to Inflatable Restraint Instrument Panel Module Replacement

Air Distributor Outer Duct - Right, Screw

Tighten: 1.0 N.m (9 lb in)

Air Distributor Outer Duct - Right
