Air Outlet Duct Replacement - Instrument Panel (I/P) - Upper Left

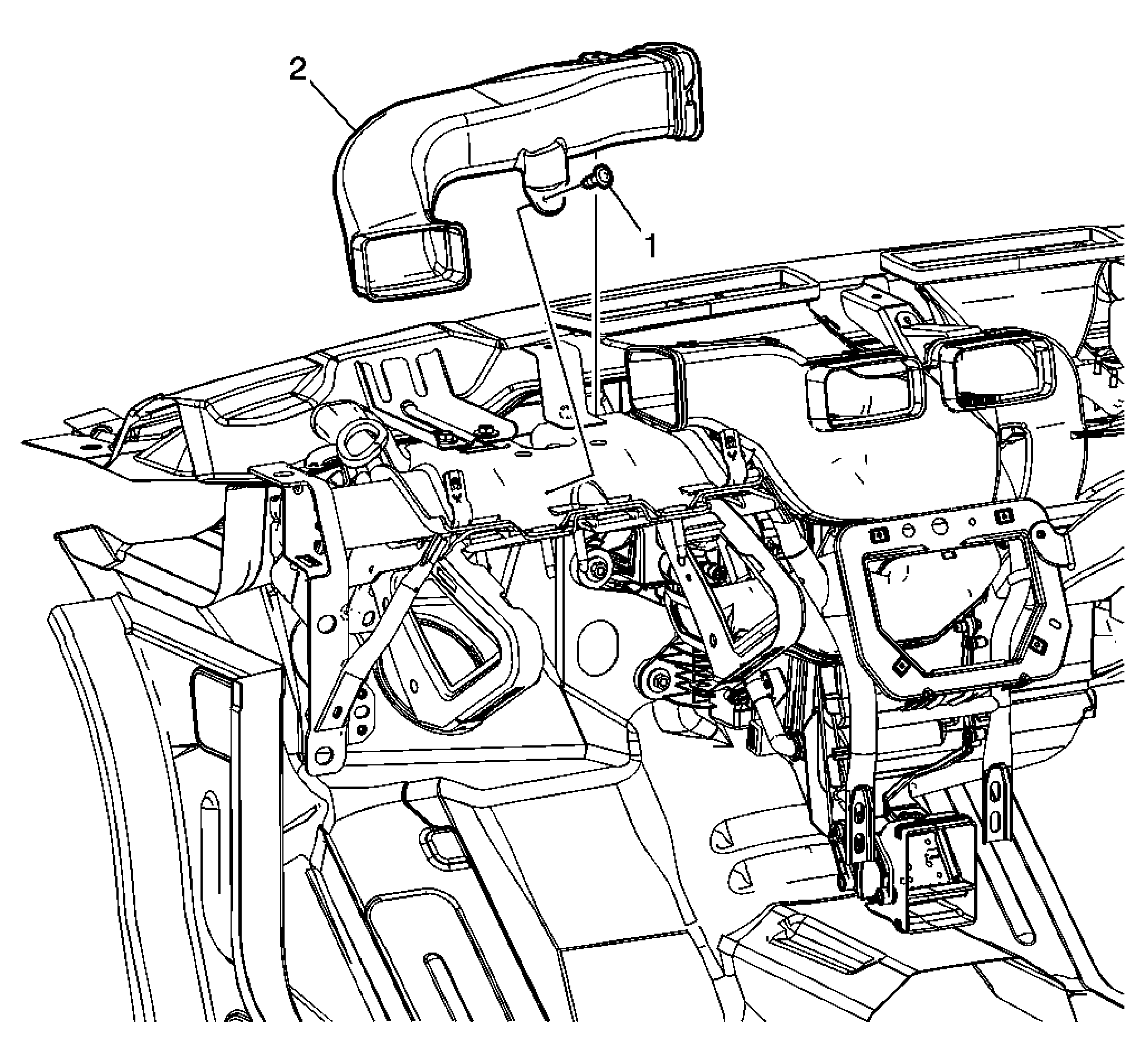

Fig 1: Removing/Installing Instrument Panel Outer Air Outlet Upper Duct - Left Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice Fastener Tightening Specifications: Refer to Fastener Tightening Specifications Preliminary Procedure: Remove the instrument panel lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement
1	Air Distributor Outer Duct - Left Screw (Qty: 2) Tighten: 1.0 N.m (9 lb in)
2	Air Distributor Outer Duct - Left
