Seat Cushion Heater Element Replacement - Front

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

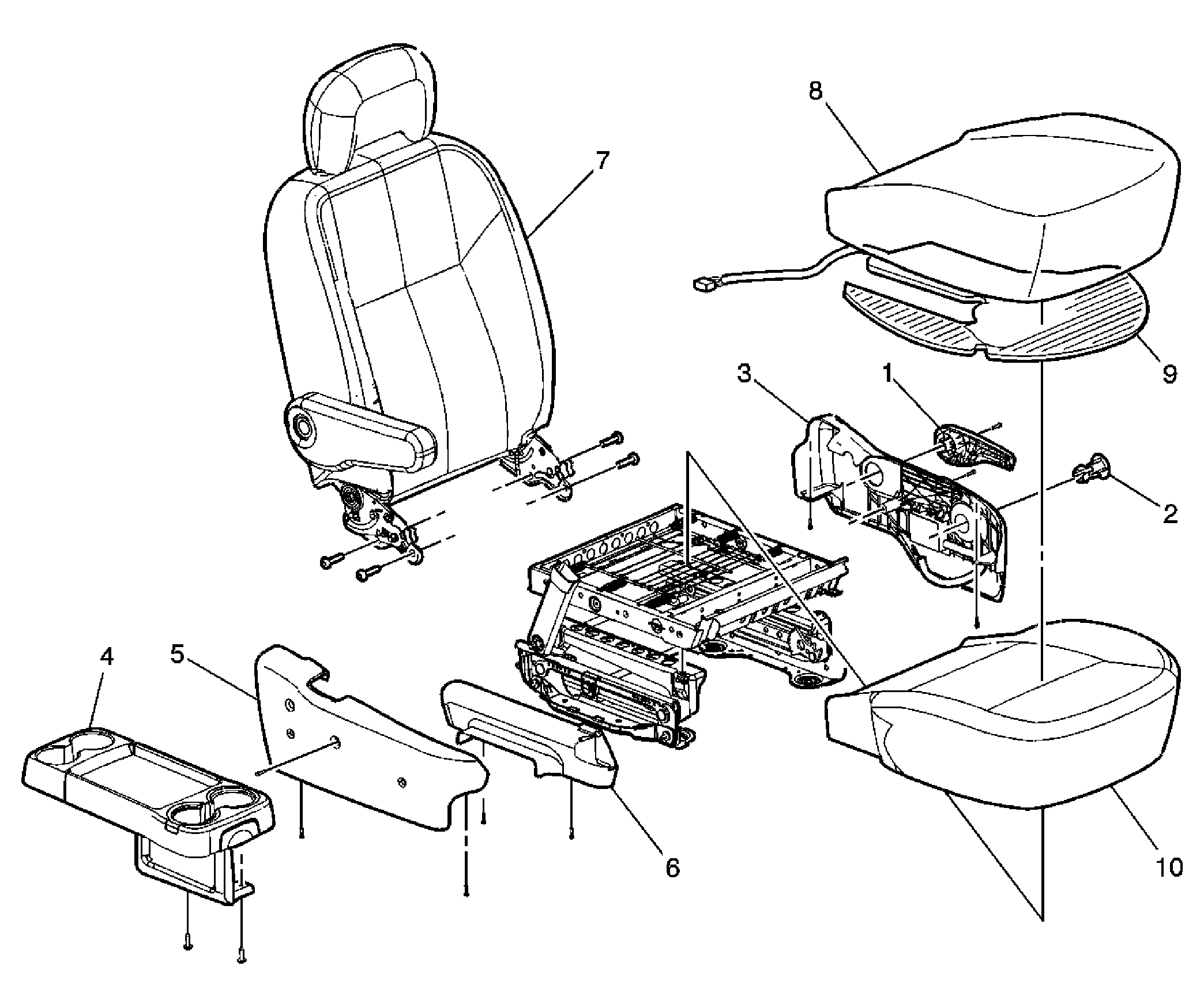

Fig 1: Identifying Front Seat Cushion Heater Element

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the front bucket seat. Refer to Seat Replacement - Front Bucket .
1	Handle, Seat Recliner Refer to Seat Back Recliner Handle Replacement - Front .
2	Plug, Seat Recliner Handle
3	Cover, Seat Outer Adjuster Refer to Seat Adjuster Track Cover Replacement - Front .
4	Tray Assembly, Seat Refer to Storage Tray Replacement - Front Seat .
5	Cover, Seat Outer Adjuster Refer to Seat Adjuster Track Cover Replacement - Front .
6	Cover, Seat Inner Adjuster Refer to Seat Adjuster Track Cover Replacement - Front .
7	Seat Back Assembly Refer to Seat Back Replacement - Front .
8	Cover, Seat Cushion Tip: The seat cushion cover is secured to the seat cushion with hog rings that must be removed when replacing the cover.
9	Heater Assembly, Seat Cushion Tip: Disconnect the electrical connector.
10	Pad, Seat Cushion
