Seat Back Heater Element Replacement - Front
WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
Seat Back Heater Element Replacement - Front

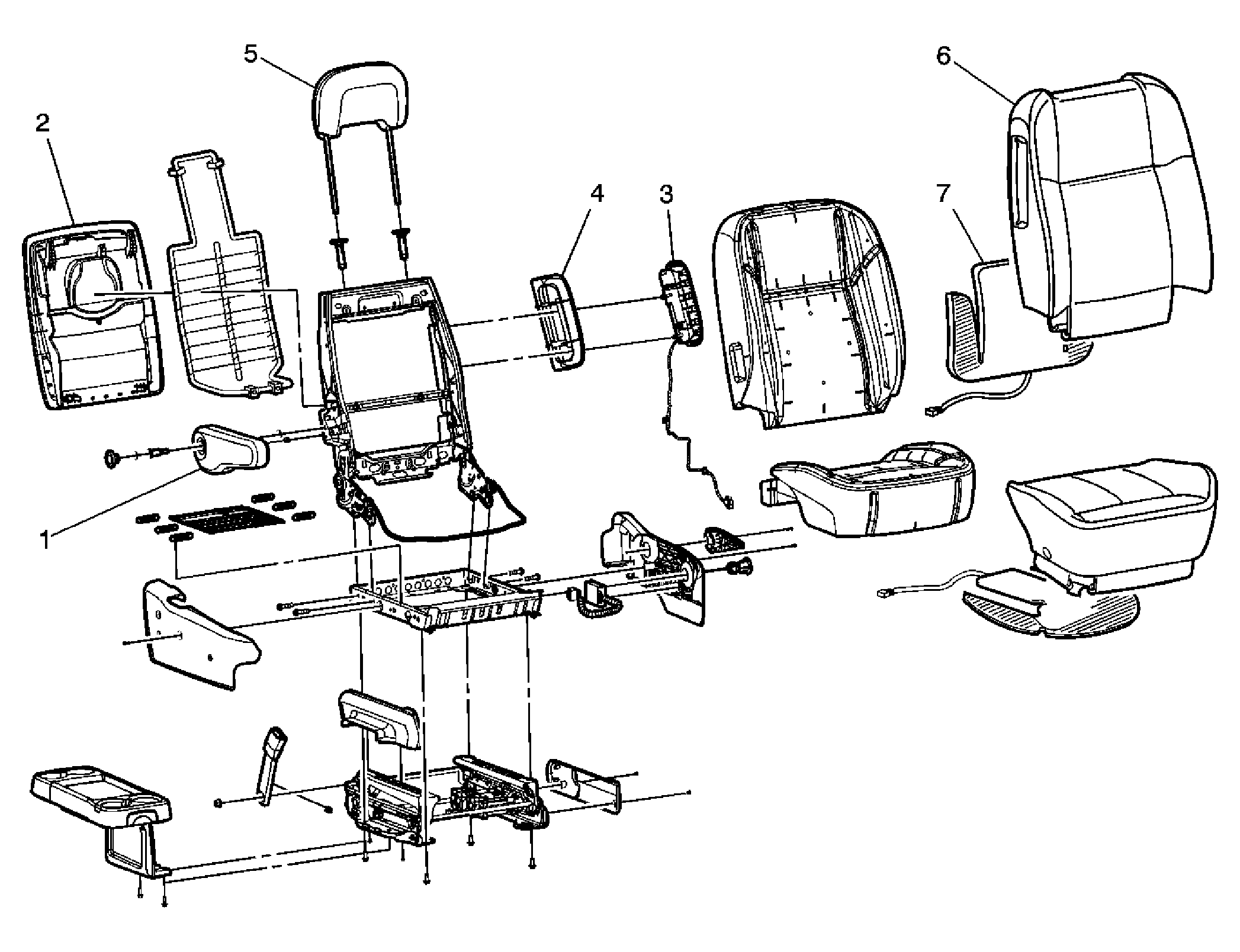

| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the front bucket seat. Refer to Seat Replacement - Front Bucket . |
|
| 1 | Armrest Assembly Refer to Armrest Replacement - Front Seat . |
| 2 | Panel Assembly, Seat Back Refer to Seat Back Panel Replacement - Front . |
| 3 | Module Assembly, Inflatable Restraint Refer to Inflatable Restraint Side Impact Module Replacement - Front in SIR. |
| 4 | Cover, Side Impact Air Bag Escutcheon |
| 5 | Head Restraint Assembly Refer to Head Restraint Replacement - Front Seat . |
| 6 | Cover, Seat Back Cushion Tip: Remove the hog rings that attach the seat cushion cover to the seat cushion. |
| 7 | Heater Assembly, Seat Back Cushion |
