Seat Adjuster Replacement - Front (Manual)
WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
Seat Adjuster Replacement - Front (Manual)

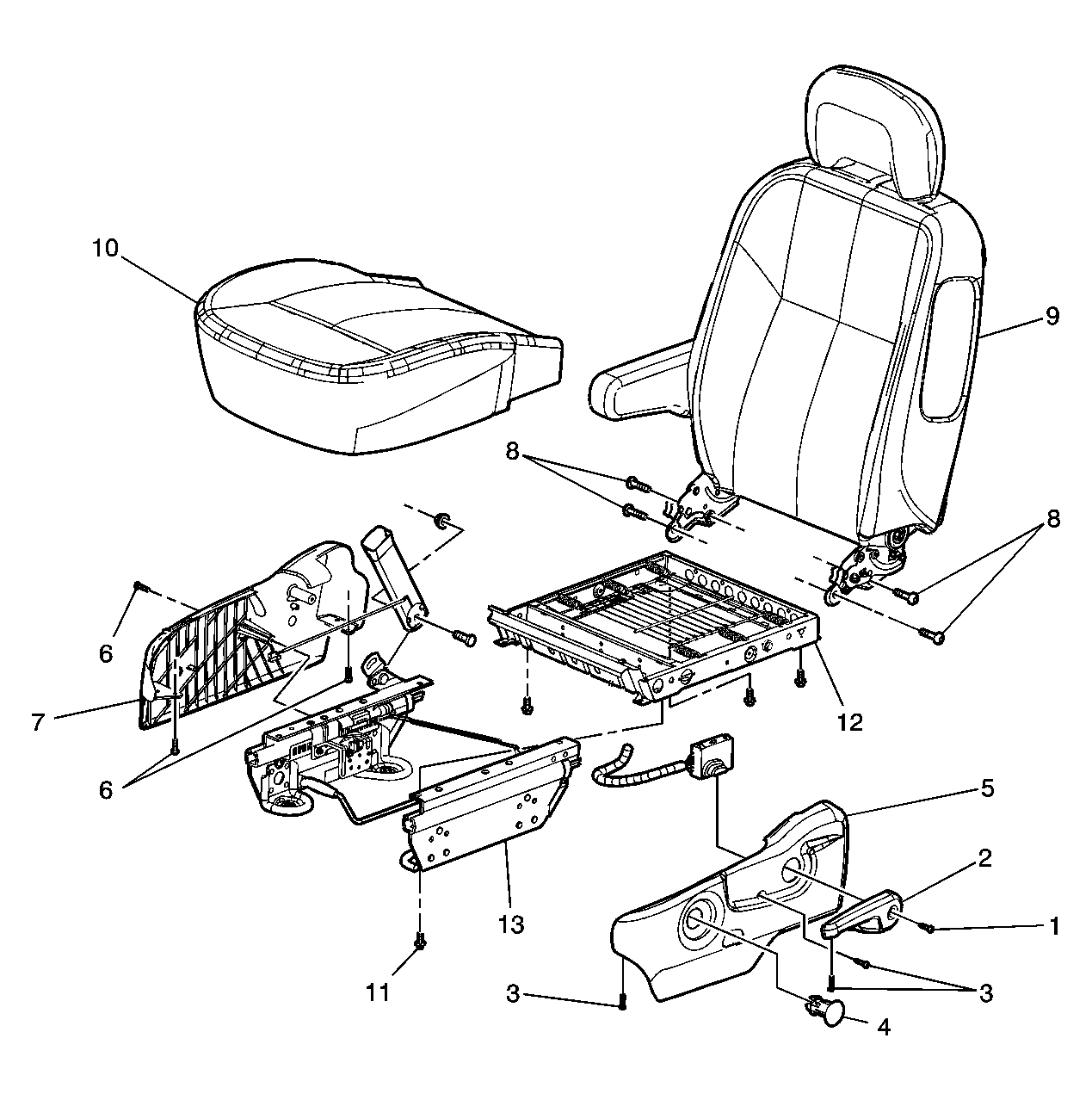

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the front bucket seat. Refer to Seat Replacement - Front Bucket . |
|
| 1 | Screw, Seat Recliner Handle Tighten: 2 N.m (18 lb in) |
| 2 | Handle, Seat Recliner |
| 3 | Screw, Seat Outer Adjuster Cover (Qty: 3) Tighten: 2 N.m (18 lb in) |
| 4 | Plug, Seat Recliner Handle |
| 5 | Cover, Seat Outer Adjuster |
| 6 | Screw, Seat Outer Adjuster Cover (Qty: 3) Tighten: 2 N.m (18 lb in) |
| 7 | Cover, Seat Outer Adjuster |
| 8 | Bolt, Seat Recliner (Qty: 4) Tighten: 48 N.m (35 lb ft) |
| 9 | Seat Back Assembly |
| 10 | Cushion Assembly, Seat Refer to Seat Cushion Cover and Pad Replacement - Front . |
| 11 | Bolt, Seat Adjuster (Qty: 4) Tighten: 32 N.m (24 lb ft) |
| 12 | Frame Assembly, Seat Cushion Frame |
| 13 | Adjuster Assembly, Manual Seat |
