Head Restraint Mechanism, Handle and Seat Back Latch Release Replacement - Rear No 2

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

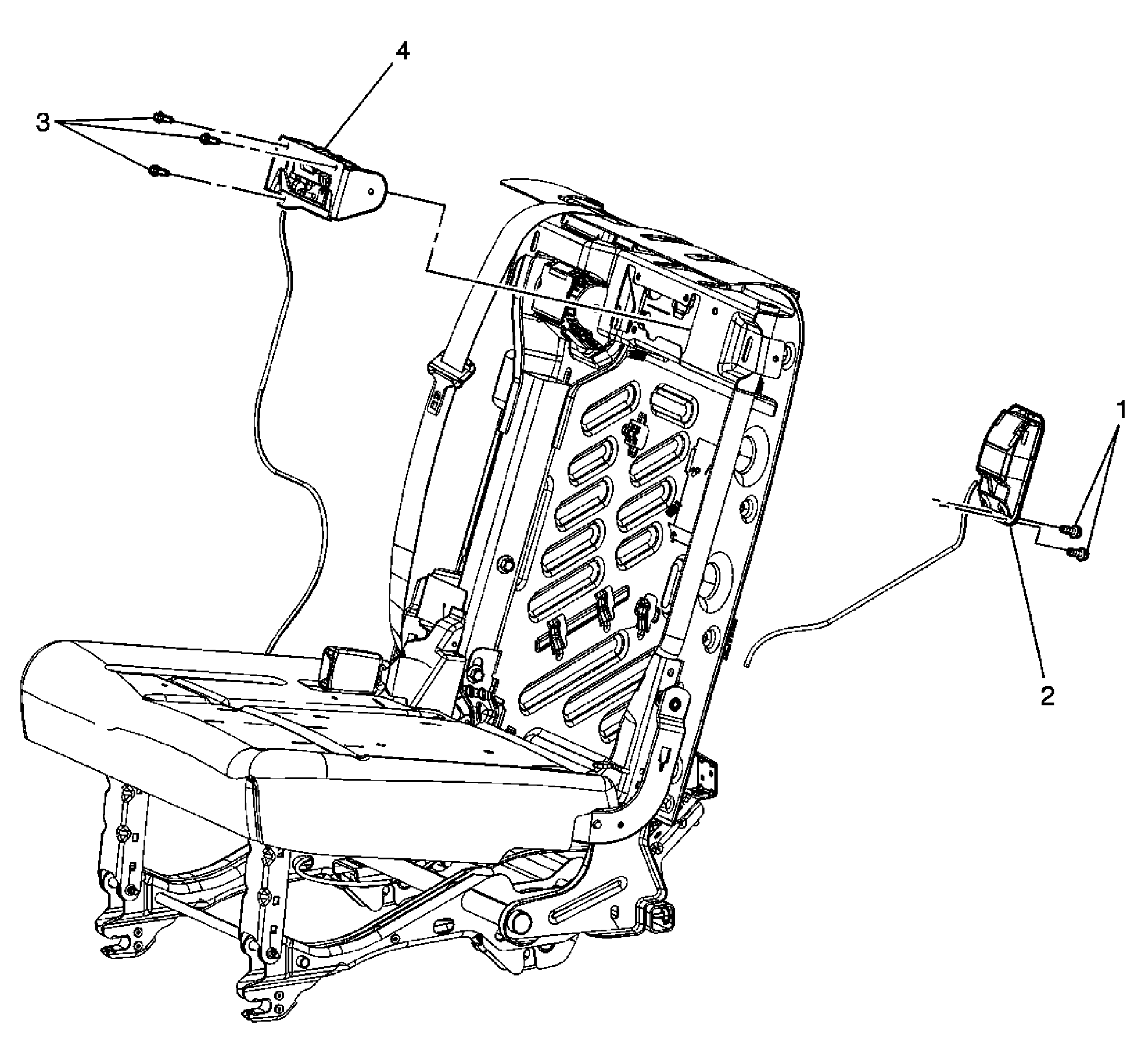

Fig 1: View Of Head Restraint Mechanism, Handle & Seat Back Latch Release - Rear No 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
Seat Back Latch Release Handle Replacement Preliminary Procedure: Remove the seat back cushion cover and pad. Refer to Seat Back Cover and Pad Replacement - Rear No. 2 .
1	Screw, Seat Back Latch Release Handle (Qty: 2) Tighten: 2 N.m (18 lb in)
2	Handle Assembly, Seat Back Latch Release
Head Restraint Mechanism Replacement Preliminary Procedure: Remove the seat back cushion cover and pad. Refer to Seat Back Cover and Pad Replacement - Rear No. 2 .
3	Screw, Head Restraint Mechanism (Qty: 3) Tighten: 2 N.m (18 lb in)
4	Mechanism, Head Restraint
