Removal Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Identifying Blower Motor Electrical Connector
    GM1547641Courtesy of GENERAL MOTORS CORP.
  1. Remove the right side instrument panel (I/P) insulator. Refer to Knee Bolster, Insulator, Molding Replacement - Instrument Panel in Instrument Panel, Gages and Console.
  2. Disconnect the blower motor electrical connector (1).

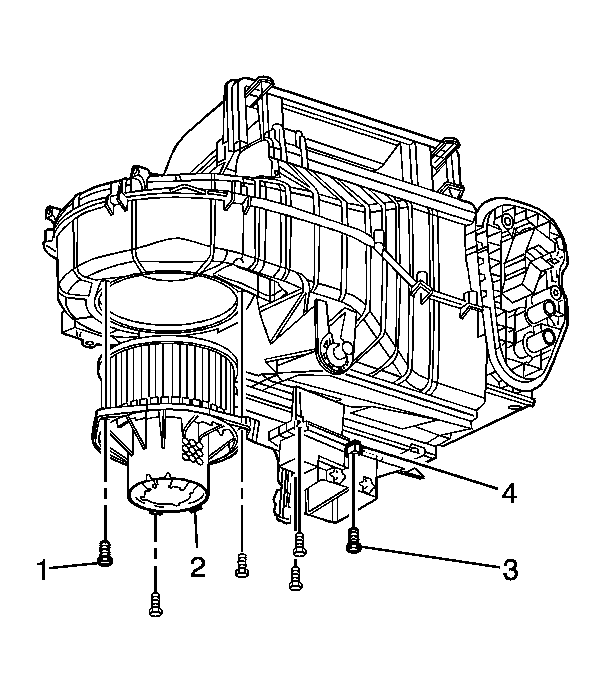

    3. Fig 2: Identifying Blower Motor & Components
    GM1547642Courtesy of GENERAL MOTORS CORP.
  3. Remove the blower motor screws (1).
  4. Remove the blower motor (2).
