Installation Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Locating Defroster Door & Components
    GM1548540Courtesy of GENERAL MOTORS CORP.
  1. Install the defrost actuator (3).
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the defrost actuator bolts/screws (4).

    Tighten:  Tighten the screws to 1.2 N.m (11 lb in).

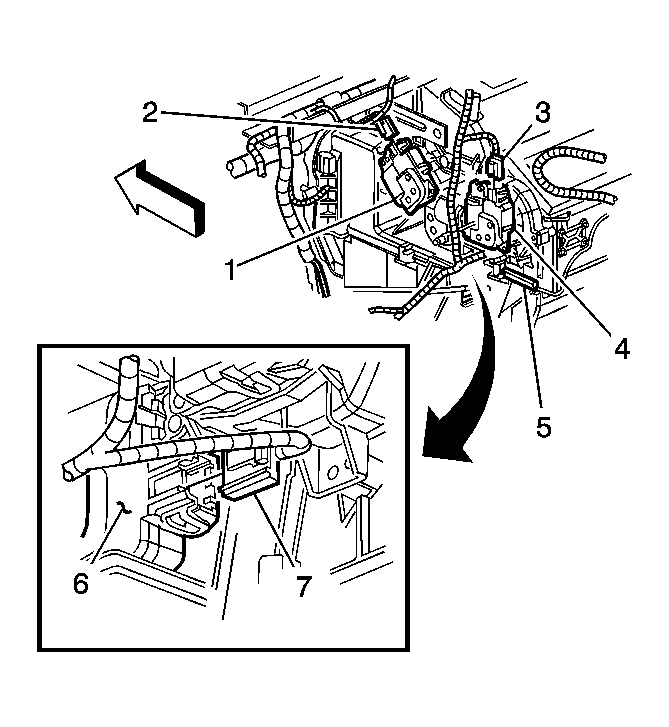

    3. Fig 2: Identifying Air Temperature Actuator Components (Single Zone)
    GM1548556Courtesy of GENERAL MOTORS CORP.
  3. Connect the defrost actuator electrical connector (2).
  4. Install the driver side knee bolster. Refer to Knee Bolster, Insulator, Molding Replacement - Instrument Panel in Instrument Panel, Gages and Console.
  5. Re-calibrate the actuators. Refer to Re-Calibrating Actuators .
