Fender Replacement - Front

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

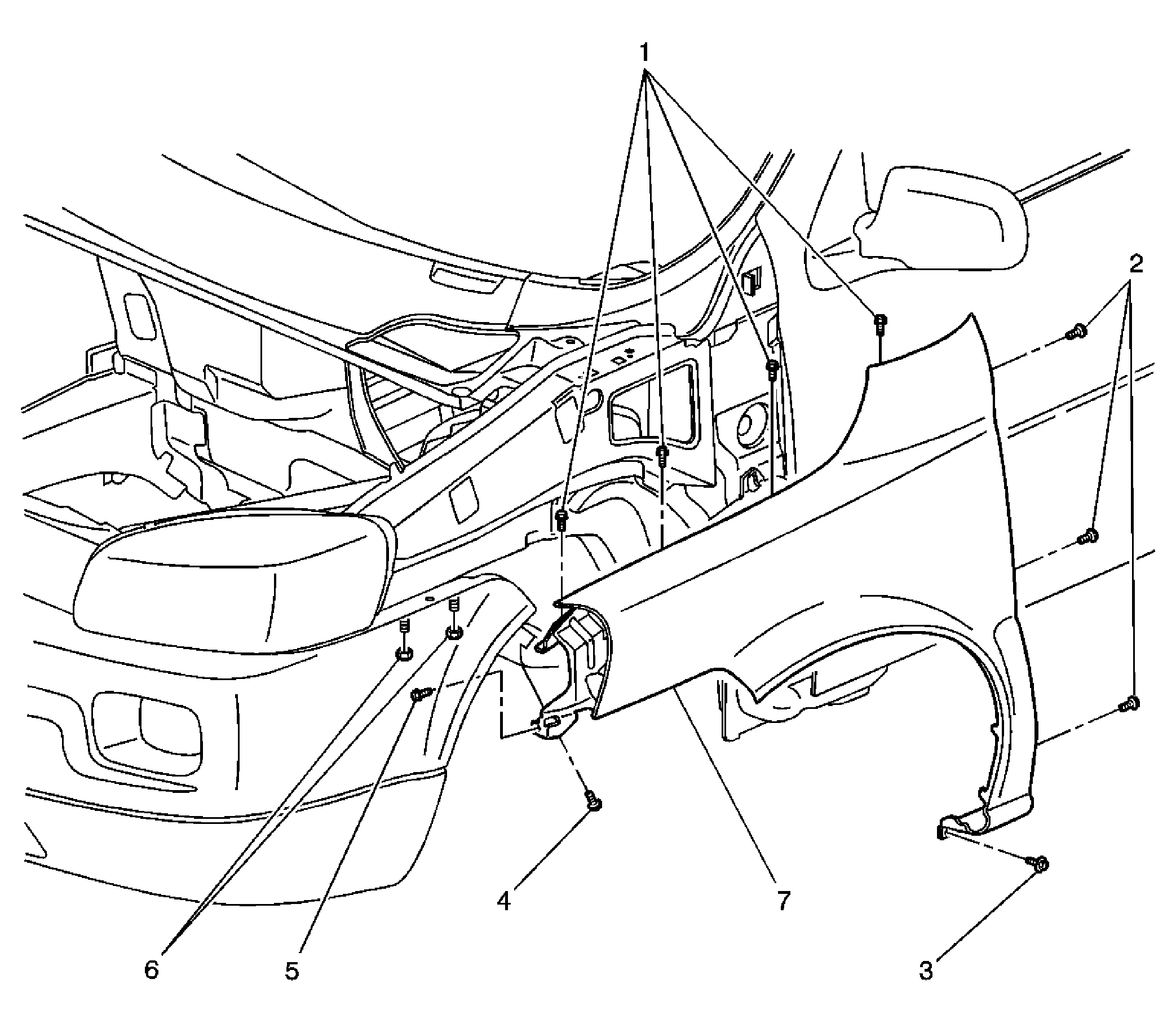

Fig 1: Replacing Front Fender

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the hood hinge. Refer to Hood Hinge Replacement . Remove the front wheelhouse liner. Refer to Wheelhouse Liner Replacement - Front . Remove the headlamp. Remove the antenna on passenger fender. Refer to Fixed Antenna Replacement .
1	Bolt, Front Fender Upper (Qty: 4) Tighten: 8 N.m (71 lb in)
2	Bolt, Front Fender Rear (Qty: 3) Tighten: 8 N.m (71 lb in)
3	Bolt, Front Fender Lower Rear Tip: Reposition the rocker panel molding to gain access to the bolt. Tighten: 8 N.m (71 lb in)
4	Bolt, Front Fender Lower Front Tighten: 8 N.m (71 lb in)
5	Bolt, Front Fender Upper Front Tighten: 6 N.m (53 lb in)
6	Nut, Front Fender Front Lower Bracket (Qty: 2) Tip: Loosen the nut enough to allow the fender to slide out of the slots. Tighten: 6 N.m (53 lb in)
7	Fender Assembly, Front
