Hood Hinge Replacement

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

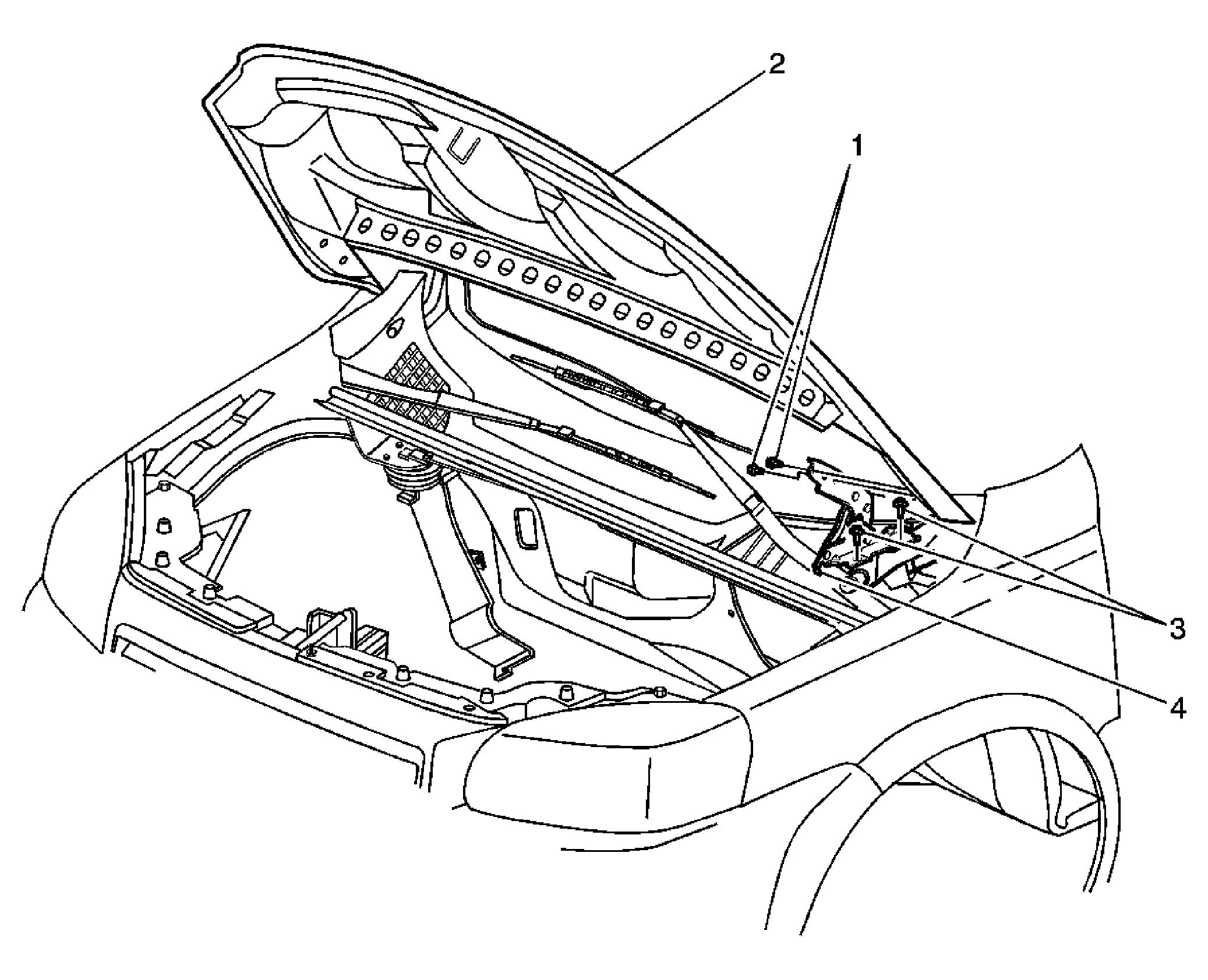

Fig 1: Replacing Hood Hinges
GM1547159Courtesy of GENERAL MOTORS CORP.
Hood Hinge Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Bolt, Hood Hinge Hood Side (Qty: 4)

Tighten:  25 N.m (18 lb ft)
2 Hood Assembly
Tip:  Mark the location of the hinge to the hood with a grease pencil to aid in alignment.
3 Bolt, Hood Hinge Body Side (Qty: 4)

Tighten:  25 N.m (18 lb ft)
4 Hinge Assembly, Hood (Qty: 2)
