Removal Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seats. Refer to Seat Replacement - Rear .
  2. Remove the rear upper finish panel trim. Refer to Finish Panel Replacement - Upper Rear Trim .
  3. Remove the rear upper finish panel trim. Refer to Trim Panel Replacement - Body Lock Pillar Upper .

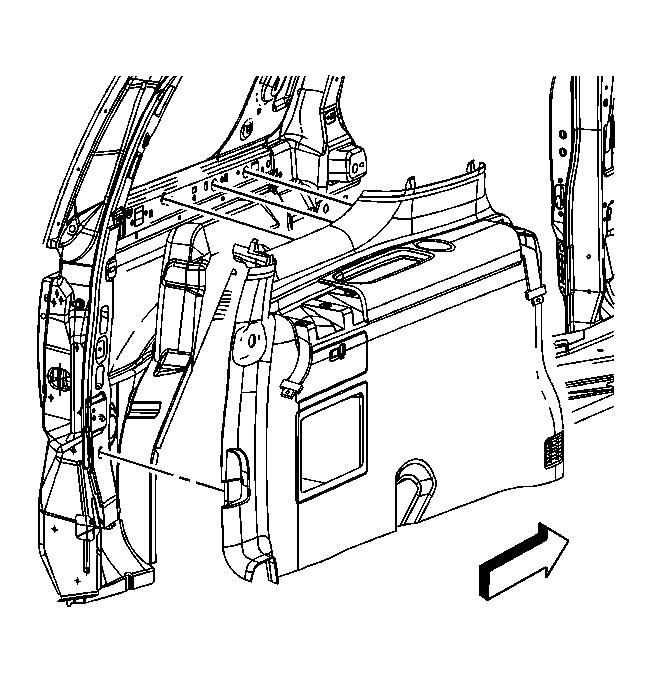

    4. Fig 1: Removing/Installing Rear Seat Belt Escutcheons
    GM1552103Courtesy of GENERAL MOTORS CORP.
  4. Remove the rear seat belt escutcheons.
  5. Remove the rear seat belt anchor retainer bolts. Refer to Seat Belt Retractor Replacement - Rear (LWB w/RPO E59) or Seat Belt Retractor Replacement - Rear (SWB) .
  6. Remove the upper cargo net retainers.
  7. Remove the liftgate sill plate. Refer to Door Sill Plate Replacement - Liftgate .

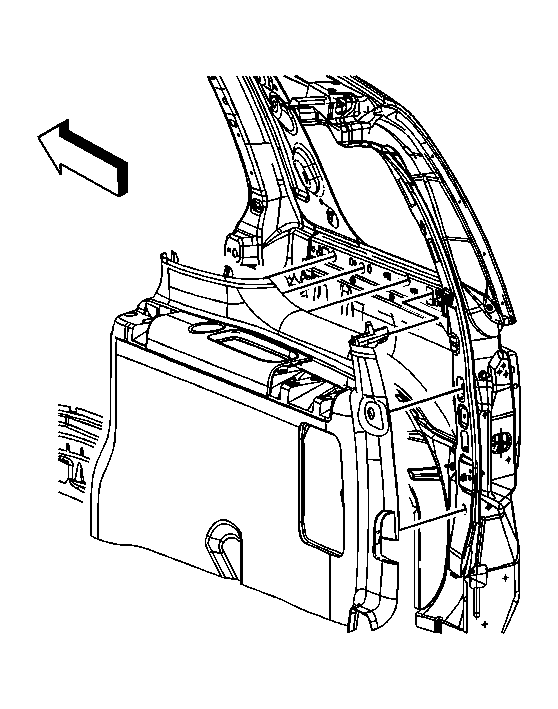

    8. Fig 2: Removing/Installing Left Rear Quarter Trim Panel
    GM1552175Courtesy of GENERAL MOTORS CORP.
  8. Remove the rear quarter trim panel retainers using J 38778  .
  9. Feed the seat belts through the openings in the trim panel.
  10. Remove the rear quarter trim panel from the vehicle.
