Seat Belt Retractor Replacement - Rear (LWB w/RPO E59)

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

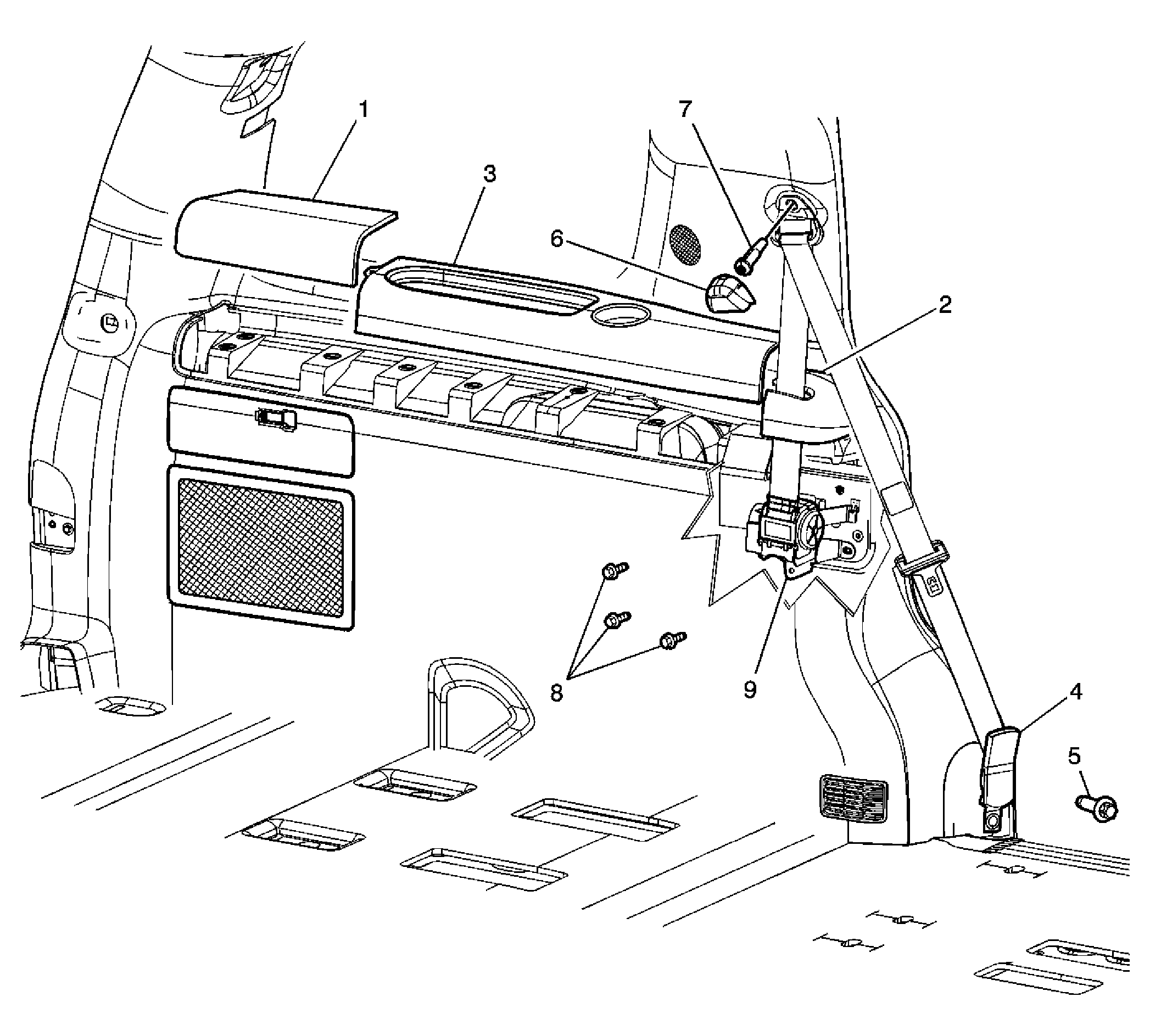

Fig 1: Identifying Rear Seat Belt Retractor - (LWB w/RPO E59)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Cover, Body Side Rear Trim Panel
2	Cover, Rear Seat Shoulder Belt Retractor
3	Holder, Body Side Rear Trim Panel Cup
4	Cover, Rear Seat Shoulder Belt Bolt Tip: Slide the cover up in order to access the shoulder belt bolt.
5	Bolt, Rear Seat Shoulder Belt Anchor Tighten: 42 N.m (31 lb ft)
6	Cover, Shoulder Belt Guide Trim
7	Bolt, Rear Seat Shoulder Belt Guide Tip: Reposition the rear quarter trim panel to access the retractor bolts. Tighten: 43 N.m (32 lb ft)
8	Bolts, Rear Seat Shoulder Belt Retractor (Qty: 3) Tighten: 25 N.m (18 lb ft)
9	Belt, Rear Seat Shoulder Tip: Lift up and pull out the retractor to disengage it from the body.
